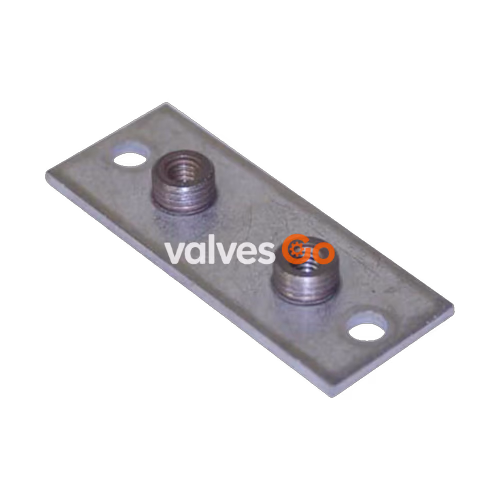

Swagelok 304-S1-WPEM is an elongated metric weld plate constructed from 304 stainless steel, specifically designed for use within tube support systems. This component plays a critical role in securing tube or pipe runs, helping to limit the effects of shock and vibration on the overall transport system.

As part of the Swagelok tube support kit range, these weld plates are available in both standard and elongated lengths to accommodate various installation requirements. A key technical feature is that the weld nuts are securely welded to the plate rather than being press-fitted, ensuring high structural integrity and reliability under operational stress.

Specifications

Property	Value
Body Material	304 Stainless Steel
Fractional/Metric	Metric
Length	64 mm (2.52 in.)
eClass (10.1)	37029290
UNSPSC (17.1001)	40174607

Industrial Classification Data

Identification Codes

• eClass (4.1): 37020312
• eClass (5.1.4): 37920191
• eClass (6.0): 37020232
• UNSPSC (4.03): 40141700
• UNSPSC (13.0601): 40141700

Selection Note

When selecting products for your system, the total system design must be considered to ensure safe, trouble-free performance. Material compatibility and adequate ratings are the responsibilities of the system designer and user.
