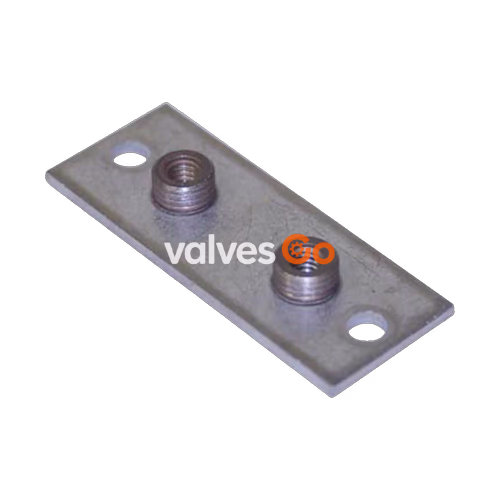

Swagelok 304-S6-WPE is an elongated fractional weld plate constructed from 304 stainless steel, measuring 4.57 inches (116 mm) in length. This component is a critical part of tube support systems, designed to provide a stable mounting base for tubing and piping installations. By utilizing Swagelok tube support kits, system designers can effectively limit the detrimental effects of shock and vibration on the fluid delivery system.

Design Features

Weld plates are available in both standard and elongated lengths to accommodate various installation requirements. A key technical feature of the 304-S6-WPE is the attachment method of the weld nuts: they are securely welded to the plate rather than being press-fitted. This ensures structural integrity and prevents the nuts from loosening under mechanical stress or vibration.

Technical Specifications

Attribute	Specification
Body Material	304 Stainless Steel
Fractional/Metric	Fractional
Length	4.57 in. (116 mm)

Industry Classifications

System	Code
eClass (4.1)	37020312
eClass (5.1.4)	37920191
eClass (6.0)	37020232
eClass (6.1)	37029290
eClass (10.1)	37029290
UNSPSC (4.03)	40141700
UNSPSC (10.0)	40141700
UNSPSC (11.0501)	40141700
UNSPSC (13.0601)	40141700
UNSPSC (15.1)	40141700
UNSPSC (17.1001)	31162906

Product Selection

When selecting tube support components, the total system design must be considered to ensure safe, trouble-free performance. Material compatibility, proper installation, and maintenance are essential responsibilities of the system designer and user.
