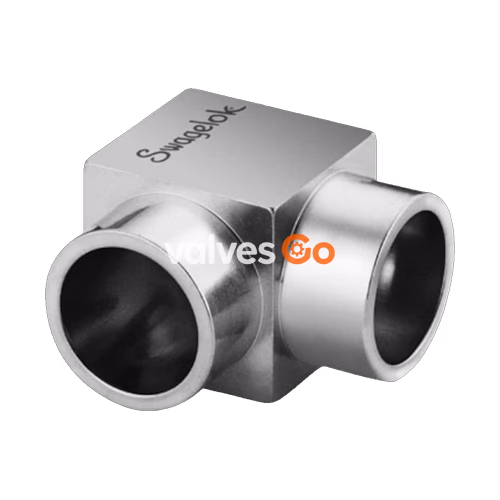

Swagelok 6LV-8MW-9 is a Micro-Fit® 90° union elbow engineered for high-purity fluid systems. Constructed from 316L VIM-VAR stainless steel, this fitting ensures maximum material integrity and compatibility with sensitive processes. It features 1/2 inch Micro-Fit tube butt weld connections on both ends, designed to provide permanent, high-strength joints in compact layouts.

Directional Flow Efficiency

The Micro-Fit® 90° elbow delivers tight-radius turns with ultra-clean welds, making it ideal for compact, high-purity systems requiring smooth directional flow. Its design minimizes dead space and turbulence, which is critical for maintaining process purity and flow stability.

Technical Specifications

Specification	Data
Body Material	316L VIM-VAR
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/2 in.
Connection 1 Type	Micro-Fit Tube Butt Weld
Connection 2 Size	1/2 in.
Connection 2 Type	Micro-Fit Tube Butt Weld
Flow Restrictor	No

Product Identifiers

Standard	Code
eClass (10.1)	37020501
UNSPSC (17.1001)	40183101
UNSPSC (13.0601)	40183101

Cleaning Standard

This product undergoes Swagelok Standard Cleaning and Packaging (SC-10) to ensure it meets basic industrial requirements for cleanliness and protection during transit.

System Safety

The system designer and user are responsible for safe product selection, considering total system design to ensure trouble-free performance. Do not mix Swagelok products or components with those of other manufacturers unless governed by specific industrial design standards.
