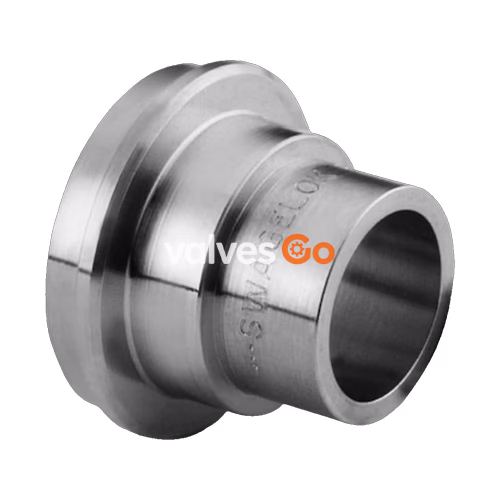

Swagelok 6LVV-4-VCR-3S-4TB2P is a 316L VIM VAR VCR® fitting configured as a short TBW (tube butt weld) gland. This fitting features a 1/4 in. VCR metal gasket face seal gland on one end and a 1/4 in. tube butt weld on the other, with a 0.25 in. (6.4 mm) extension. It is processed to the Ultrahigh-Purity Process Specification (SC-01) and electropolished.

Short Glands

Short VCR® gland supports compact, high-purity face seal connections in tight spaces—ideal for semiconductor and vacuum-grade assemblies.

Specifications

Specification	Value
Body Material	316L VIM VAR
Cleaning Process	Ultrahigh-Purity Process Specification (SC-01)
Connection 1 Size	1/4 in.
Connection 1 Type	VCR® Metal Gasket Face Seal Gland
Connection 2 Size	1/4 in.
Connection 2 Type	Tube Butt Weld
Feature	Electropolished
Flow Restrictor	No
eClass (4.1)	37020713
eClass (5.1.4)	37920191
eClass (6.0)	22569200
eClass (6.1)	37029290
eClass (10.1)	37029290
UNSPSC (4.03)	31163000
UNSPSC (10.0)	40142610
UNSPSC (11.0501)	40142610
UNSPSC (13.0601)	40183107
UNSPSC (15.1)	40183107
UNSPSC (17.1001)	40183107

WARNING

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
