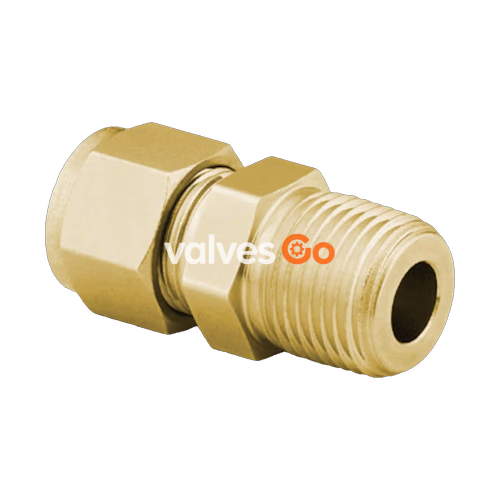

Swagelok B-1010-1-8 is a brass male connector tube fitting designed to provide secure, leak-tight connections between 5/8 in. tubing and 1/2 in. male NPT threaded ports. This straight connector is part of the Swagelok tube fitting family, engineered for reliable performance in critical fluid systems and industrial applications.

Technical Specifications

Attribute	Detail
Body Material	Brass
Bored Through	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	5/8 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/2 in.
Connection 2 Type	Male NPT
Flow Restrictor	No

Identification Codes

Industry Standard Identifiers

• eClass (10.1): 37020590
• UNSPSC (15.1): 40183110
• Part Number: B-1010-1-8

Safety and System Design

When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Component Interchangability

Do not mix or interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
