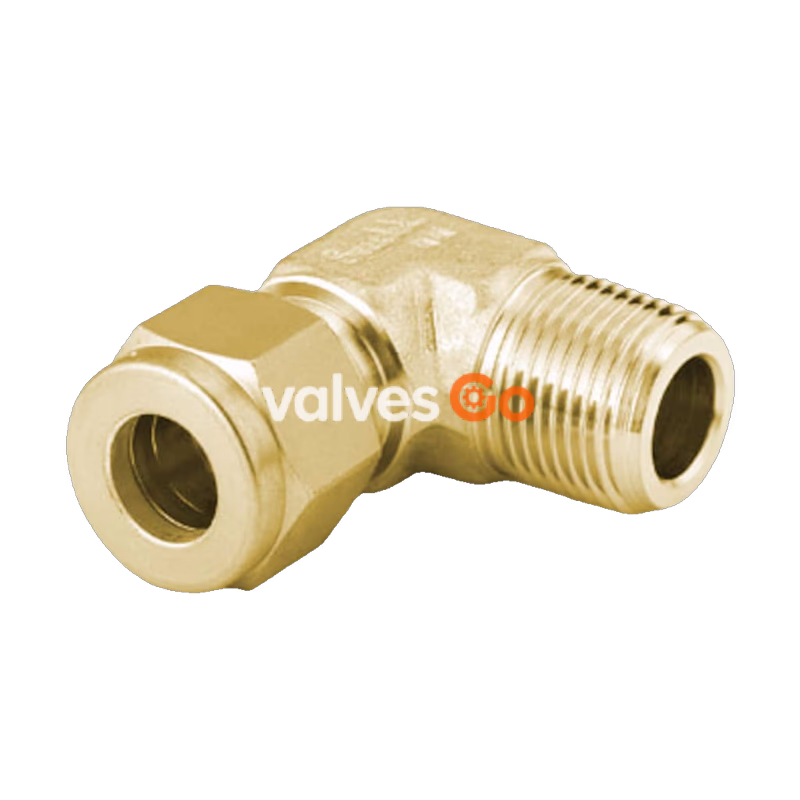

Swagelok B-10M0-2-6RT is a high-quality brass male elbow tube fitting designed for reliable performance in industrial fluid systems. This 90-degree connector enables a compact, angled connection between 10 mm outer diameter tubing and 3/8 in. male ISO tapered threaded ports. Processed with standard SC-10 cleaning and packaging, it is suitable for critical applications requiring high integrity and leak-tight sealing.

90° Elbows

This 90-degree male tube connector is engineered to create secure connections in tight spaces. It provides firm tube grip and robust vibration resistance, ensuring consistent sealing performance even under demanding conditions.

Key advantages of the Swagelok tube fitting design include:

• Compact Design: Ideal for angled connections in high-density systems.
• Vibration Resistance: Proven performance in systems subject to mechanical stress.
• Proven Reliability: Supported by over 65 years of field success and extensive documented testing.

Technical Specifications

Specification	Details
Material	Brass
Tube Connection	10 mm Swagelok® Tube Fitting
Threaded Connection	3/8 in. Male ISO Tapered Thread
Cleaning Standard	SC-10 (Standard Cleaning)
Full Port	No (Not Bored Through)

Industrial Identifiers

• eClass (10.1): 37020501
• UNSPSC (15.1): 40183101
• UNSPSC (13.0601): 40183101

Safety Information

Proper product selection and system design are the responsibilities of the system designer and user. All catalog contents must be reviewed to ensure safe installation, material compatibility, and adequate ratings.

Interchangeability: Do not mix or interchange Swagelok products or components with those of other manufacturers to maintain system integrity.
