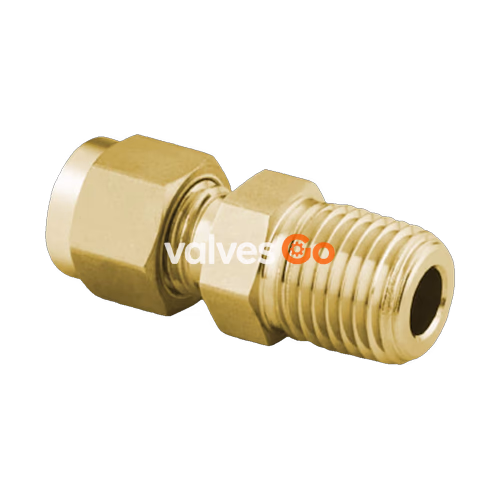

Swagelok B-300-1-2BT is a brass bored-through male connector designed to provide a secure, leak-tight connection between 3/16 inch tubing and a 1/8 inch male NPT threaded port. As a "bored-through" fitting, it features an internal diameter that is consistent throughout, allowing for the passage of probes, thermocouples, or specialized flow requirements that standard fittings might restrict.

Technical Specifications

Attribute	Value
Body Material	Brass
Bored Through	Yes
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	3/16 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/8 in.
Connection 2 Type	Male NPT
Flow Restrictor	No
eClass (10.1)	37020590
UNSPSC (17.1001)	40183110

Straight Connectors

This male tube connector enables secure connections between tubing and threaded ports, making it ideal for critical fluid systems. The design ensures robust tube grip and vibration resistance, maintaining seal integrity in demanding industrial environments.

Product Selection

The total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Safety Caution

Do not mix or interchange Swagelok products or components with those of other manufacturers. Components not governed by common industrial design standards (including Swagelok tube fitting end connections) are not compatible with non-Swagelok parts.
