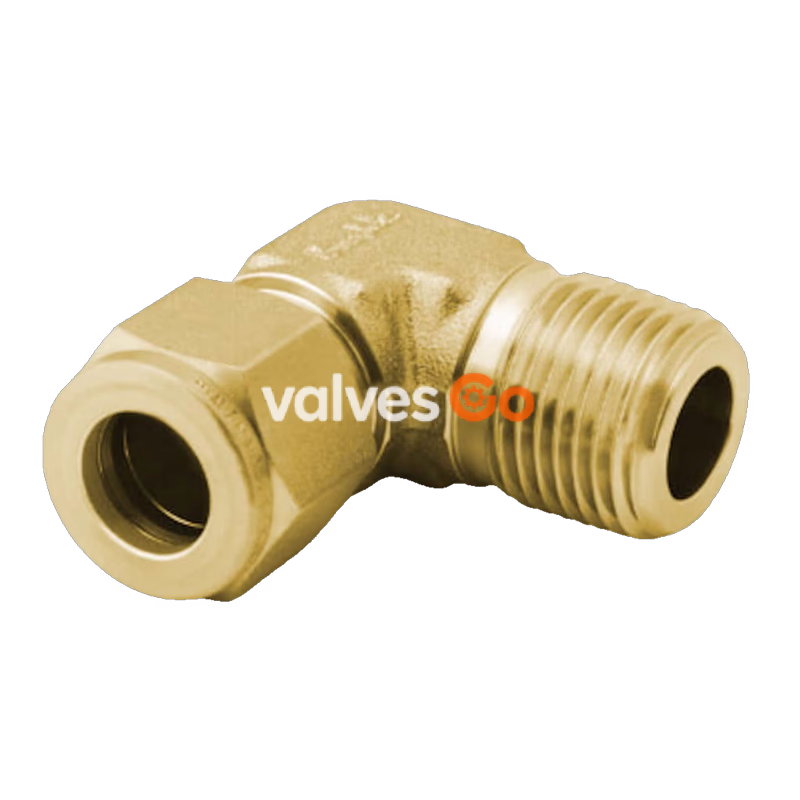

Swagelok B-600-2-6 is a high-performance brass tube fitting designed to create a reliable 90-degree angled connection between tubing and threaded ports. This male elbow is engineered for 3/8 in. tube outside diameter (OD) and 3/8 in. male NPT connections, making it ideal for compact installations in critical fluid systems where space is limited.

Technical Specifications

Specification	Detail
Body Material	Brass
Connection 1 Size	3/8 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	3/8 in.
Connection 2 Type	Male NPT
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Bored Through	No
Flow Restrictor	No
UNSPSC (15.1)	40183101
eClass (10.1)	37020501

90° Elbow Design

This 90-degree male tube connector provides a compact, angled transition between tubing and threaded ports. It is designed to maintain system integrity in critical applications, ensuring a leak-tight seal and strong tube grip even under vibration or extreme conditions.

Safety and Compatibility

Do not mix or interchange Swagelok products or components with those of other manufacturers. Swagelok tube fitting end connections are not governed by the same industrial design standards as other brands, and mixing components can compromise system safety and performance.

System Responsibility

The system designer and user are responsible for selecting products that ensure safe, trouble-free performance. Total system design, material compatibility, adequate ratings, and proper installation must be considered to maintain system integrity.
