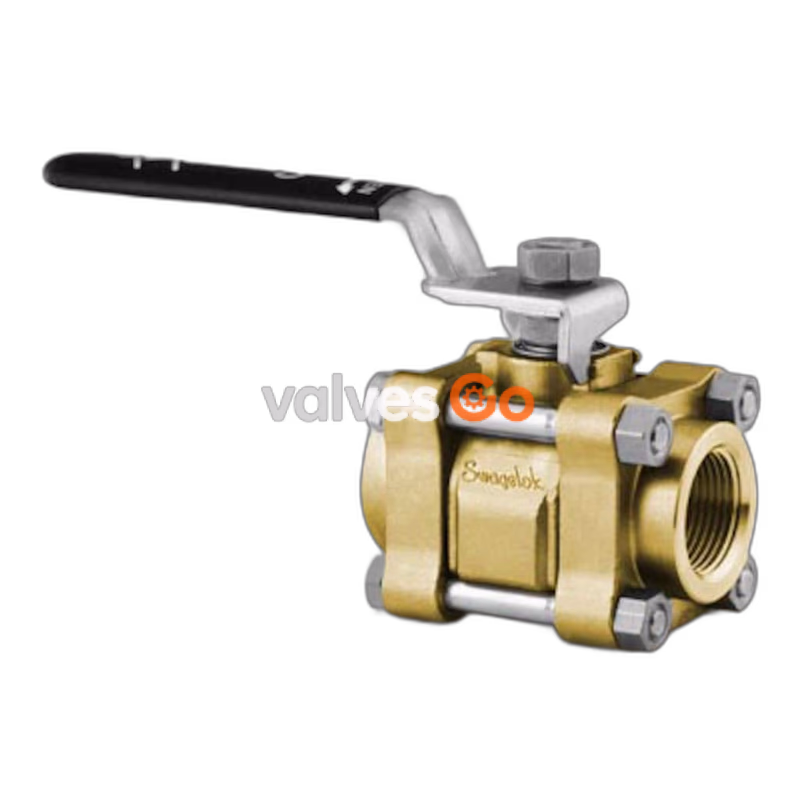

Swagelok 60 Series ball valve model B-65TF12 is a 3-piece brass valve designed for reliable, low-maintenance shutoff in general service applications. This 3/4 inch valve features female NPT end connections and a swing-out design that allows for easy maintenance without removing the entire valve from the system.
The 60 Series process/instrumentation ball valves utilize a unique coned-disk spring-loaded seat, live-loaded two-piece V-stem packing, and a quarter-turn lever handle for versatile manual actuation. It is rated for 1500 PSIG at 100°F (103 BAR at 37°C) and is low emissions certified.
Technical Specifications
| Feature | Details |
|---|---|
| Model | B-65TF12 |
| Body Material | Brass |
| Ball/Stem Material | Brass |
| Seat Material | Reinforced PTFE |
| Seat Spring Material | 316 Stainless Steel |
| Stem Bearing | PEEK |
| Flange Seal | Fluorocarbon FKM |
| Fasteners | Carbon Steel |
| Flow Coefficient (Cv) | 31 Maximum |
| Flow Pattern | 2-Way, Shutoff, Straight |
Pressure and Temperature Ratings
INFO
- Room Temperature Pressure Rating: 1500 PSIG @ 100°F / 103 BAR @ 37°C
- Service Class: General service applications.
- Cleaning: Standard Cleaning and Packaging (SC-10).
Key Features
- Swing-Out Design: Simplifies maintenance by allowing the center body section to be pivoted out while keeping the end connections in place.
- Live-Loaded Packing: Two-piece V-stem packing provides consistent sealing and minimizes the need for frequent adjustment.
- Spring-Loaded Seats: Coned-disk springs ensure a leak-tight seal at both high and low pressures.
- Low Emissions: Certified to meet low-emission standards for environmental compliance.
Installation Note
When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Standards and Testing
- Testing: All valves are tested according to Swagelok WS-22 standard.
- Compliance: Low emissions certified; meets eClass and UNSPSC classifications (eClass 37010401, UNSPSC 40141607).
