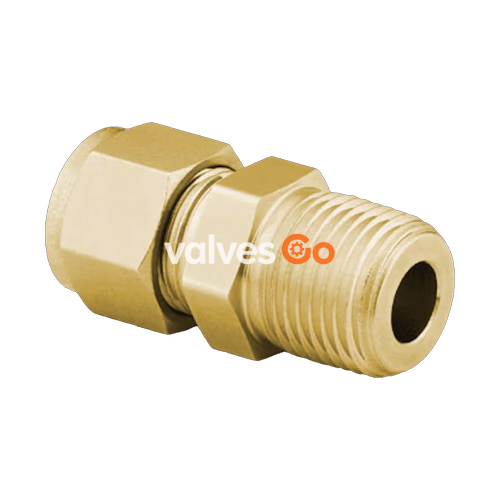

Swagelok B-810-1-16 brass tube fitting is a straight male connector designed for high-performance fluid system applications. It provides a transition from 1/2 inch Swagelok tube fitting to a 1 inch male NPT connection, manufactured from high-quality brass and processed under standard SC-10 cleaning and packaging protocols.

Technical Specifications

Attribute	Detail
Body Material	Brass
Connection 1	1/2 in. Swagelok® Tube Fitting
Connection 2	1 in. Male NPT
Cleaning	Standard Cleaning and Packaging (SC-10)
Orifice Through	No
Flow Restrictor	No
eClass (10.1)	37020590
UNSPSC (15.1)	40183110

Design Features and Performance

This straight connector is engineered for superior sealing performance through a secure tube grip and robust vibration resistance. The Swagelok tube fitting design has over 65 years of documented reliability, including successful performance under extreme conditions.

TIP

System designers and users must ensure safe product selection. Total system design must be considered to guarantee safe, trouble-free performance. Function, material compatibility, adequate ratings, and proper installation are the responsibility of the system designer.

WARNING

Do not mix or interchange Swagelok products or components with those of other manufacturers. Ensure all components meet industrial design standards for safety and compatibility.
