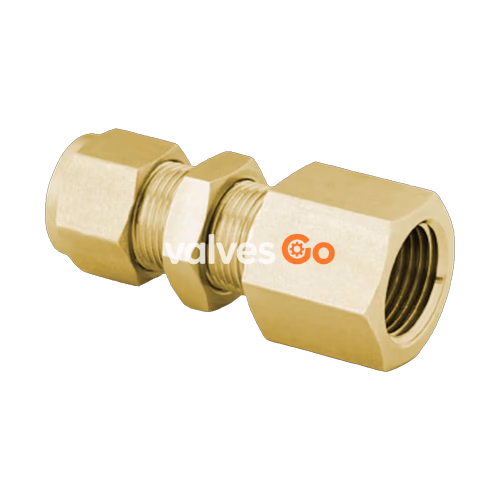

Swagelok B-810-71-8 is a brass bulkhead female connector designed to provide a secure transition for 1/2 inch tube OD lines through panels or enclosures to 1/2 inch female NPT connections. This fitting is engineered for critical systems requiring clean, sealed transitions and is processed under Swagelok's Standard Cleaning and Packaging (SC-10) protocol.

Straights Performance

Straight bulkhead fittings enable secure tube connections through panels, making them ideal for systems that demand high reliability. They offer consistent sealing performance and vibration resistance, ensuring trouble-free performance in diverse industrial applications.

Technical Specifications

Specification	Detail
Body Material	Brass
Connection 1 Size	1/2 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/2 in.
Connection 2 Type	Female NPT
Bored Through	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Flow Restrictor	No

Industry Classifications

Standard	Code
eClass (10.1)	37020590
UNSPSC (17.1001)	40183103
UNSPSC (13.0601)	40183110

Component Safety

Do not mix or interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers. The system designer and user are responsible for ensuring material compatibility, adequate ratings, and proper installation.
