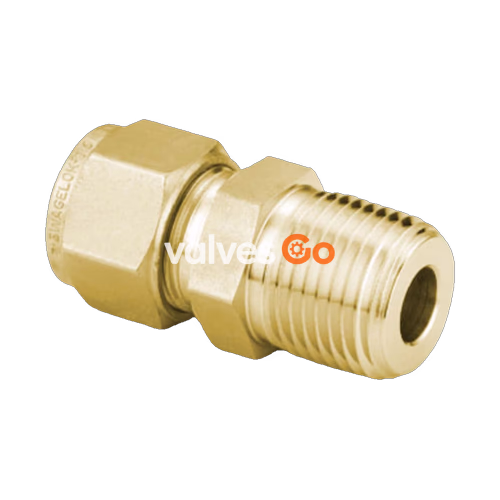

Swagelok B-8M0-1-4 is a brass male connector tube fitting designed to provide a secure and leak-tight connection between 8 mm OD tubing and a 1/4 in. male NPT threaded port. As a straight fitting, it is engineered for critical fluid systems where reliability and performance are paramount.

Straights

This male tube connector enables secure connections between tubing and threaded ports. It is designed to maintain system integrity in diverse industrial applications. The fitting undergoes Swagelok Standard Cleaning and Packaging (SC-10) to ensure compliance with common industrial cleanliness requirements.

Technical Specifications

Specification	Detail
Body Material	Brass
Connection 1	8 mm Swagelok® Tube Fitting
Connection 2	1/4 in. Male NPT
Cleaning	Standard Cleaning and Packaging (SC-10)
Bored Through	No
Flow Restrictor	No

Safety & Interchangability

Do not mix or interchange Swagelok products or components with those of other manufacturers. The total system design must be considered by the designer and user to ensure safe, trouble-free performance, including material compatibility and adequate ratings.

Identification Codes

• eClass (10.1): 37020590
• UNSPSC (17.1001): 40183110
