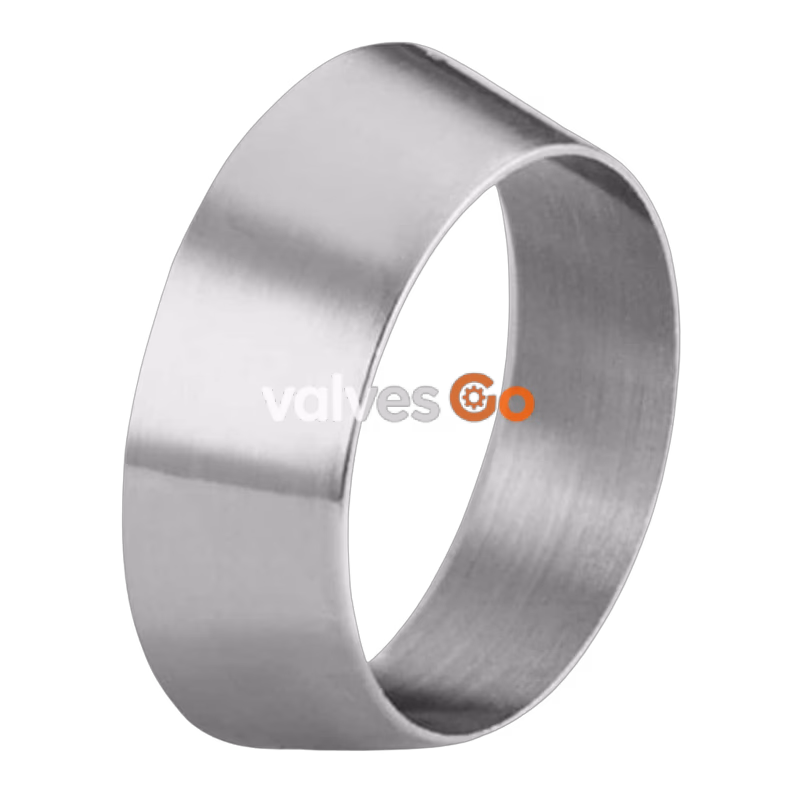

Swagelok HC-813-1 is an Alloy C-276 front ferrule designed for 1/2 inch Swagelok tube fittings. This component is engineered to provide a precise seal and a secure tube grip, making it ideal for maintaining leak-tight performance in critical fluid systems where corrosion resistance and reliability are paramount.

Technical Performance

The front ferrule is a critical part of the Swagelok two-ferrule design. It facilitates a robust seal and consistent tube grip, ensuring structural integrity under high pressure and vibration. The Alloy C-276 construction offers exceptional resistance to a wide range of aggressive chemical environments.

Specifications

Specification	Detail
Body Material	Alloy C-276
Connection 1 Size	1/2 in.
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Flow Restrictor	No
UNSPSC (17.1001)	31163102
eClass (10.1)	37020590

Safety and Interchangability

Do not mix or interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers. The total system design must be considered to ensure safe, trouble-free performance.

Application Note

Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Ensure the complete catalog contents are reviewed for safe product selection.
