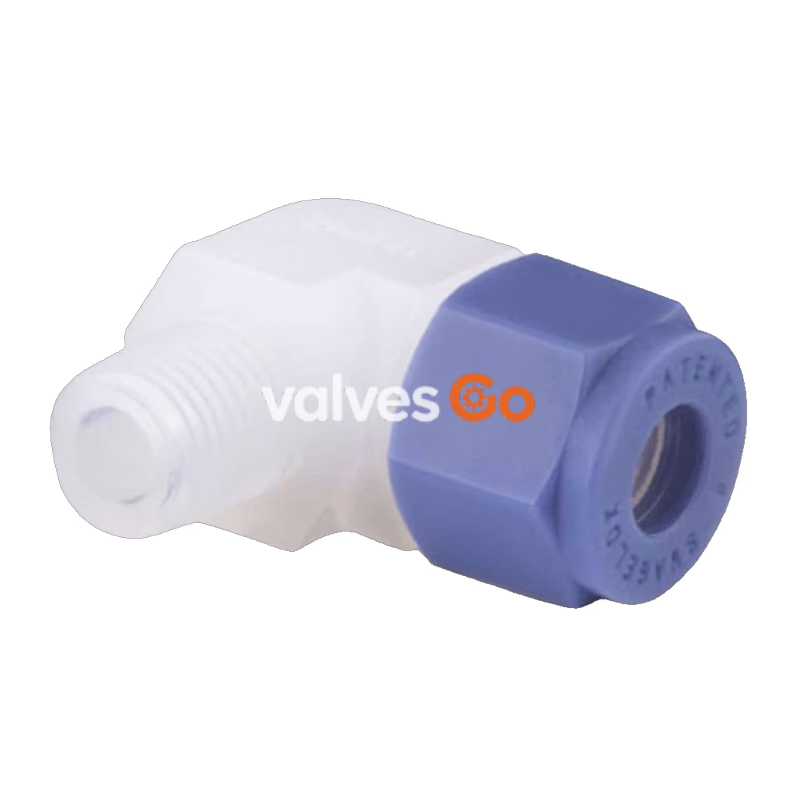

Swagelok PFA-620-2-4 is a 90° male elbow tube fitting designed to provide a compact, angled connection between 3/8 inch tubing and 1/4 inch male NPT ports. Constructed from high-quality PFA, this fitting is suitable for critical systems requiring chemical resistance and high purity, processed under Swagelok Standard Cleaning and Packaging (SC-10).

Technical Specifications

Specification	Detail
Body Material	PFA
Bored Through	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	3/8 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/4 in.
Connection 2 Type	Male NPT
Flow Restrictor	No

Product Design

This 90-degree male tube connector creates a compact, angled connection between tubing and threaded ports, making it ideal for tight spaces in critical fluid systems. It provides reliable tube grip and vibration resistance.

Identifiers

Standard	Code
eClass (10.1)	37019190
UNSPSC (17.1001)	40183101
eClass (6.0)	37020590

Safety and Installation

• Review complete catalog contents to ensure safe product selection.
• System designers must consider material compatibility, ratings, and proper installation.
• Do not mix or interchange Swagelok products or components with those of other manufacturers to maintain system integrity.
