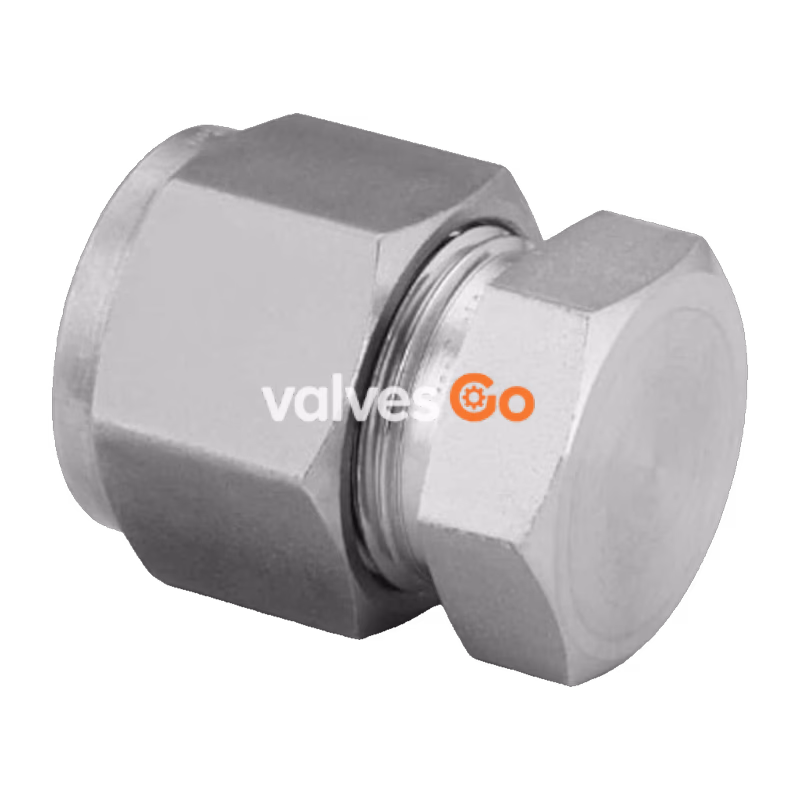

Swagelok SS-1010-C is a 316 stainless steel tube cap designed to provide a secure seal for 5/8 in. OD tubing ends. This fitting is essential for protecting system integrity during maintenance, testing, or temporary shutdowns. It is processed according to Swagelok Standard Cleaning and Packaging (SC-10) to ensure reliability in standard industrial applications.

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Connection 1 Size	5/8 in.
Connection 1 Type	Swagelok® Tube Fitting
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Bored Through	No
Flow Restrictor	No

Classification Data

• eClass (10.1): 37019190
• UNSPSC (17.1001): 40183104
• eClass (6.0): 22560207

Application and Performance

Tube cap fittings provide a robust solution for unused tube ends, ensuring a leak-tight seal that maintains the integrity of the fluid system. The Swagelok design offers superior reliability, proven over decades of performance in extreme conditions and documented through extensive testing.

Safety and Compatibility

Do not mix or interchange Swagelok products or components with those of other manufacturers. Ensure that system designers and users consider the total system design, including material compatibility and adequate ratings, to ensure safe and trouble-free performance.
