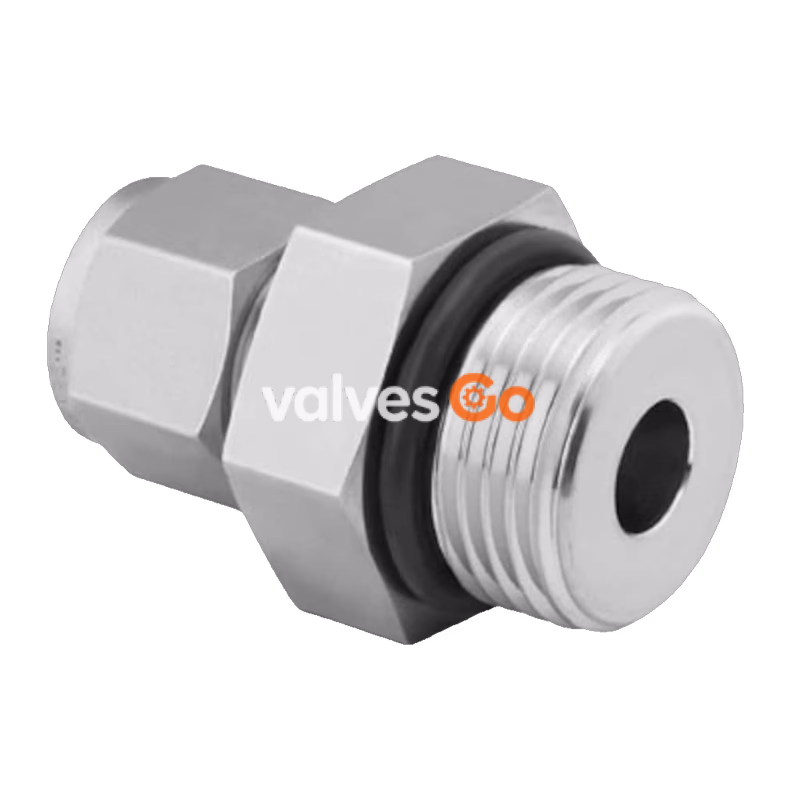

Swagelok SS-10M0-1-8ST is a 316 stainless steel male connector designed to provide a secure, leak-tight connection between 10 mm fractional tubing and a 3/4-16 male SAE/MS straight thread port. This straight fitting belongs to the Swagelok tube fitting series, known for its reliable performance in critical fluid systems and resistance to vibration.

Technical Specifications

Specification	Details
Body Material	316 Stainless Steel
Connection 1	10 mm Swagelok® Tube Fitting
Connection 2	3/4-16 in. Male SAE/MS Straight Thread
Cleaning	Standard Cleaning and Packaging (SC-10)
Lubricant	Dow Corning 111
Bored Through	No
Flow Restrictor	No

Identification Codes

• eClass (10.1): 37020590
• UNSPSC (17.1001): 40183110

Design and Application

This male tube connector enables secure transitions from tubing to threaded ports, common in industrial and analytical fluid systems. Swagelok tube fittings utilize a design that ensures consistent sealing and tube grip even under extreme conditions, backed by over 65 years of successful field application and extensive testing.

Product Selection and Safety

• System Design: The total system design must be considered to ensure safe, trouble-free performance. Material compatibility, adequate ratings, and proper installation are the responsibilities of the system designer and user.
• Interchangeability: Do not mix or interchange Swagelok products or components with those of other manufacturers to maintain system integrity and safety.
