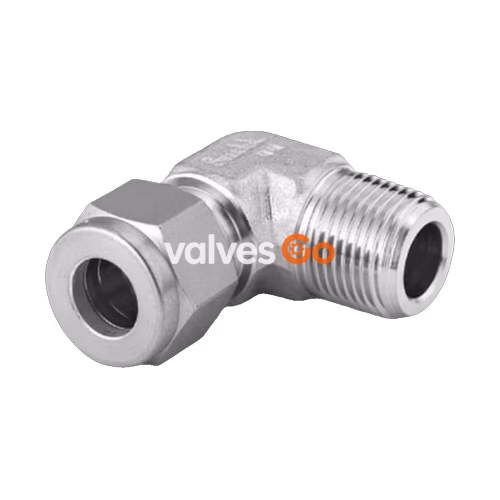

Swagelok SS-10M0-2-6RT is a 316 stainless steel tube fitting designed as a 90-degree male elbow. It provides a reliable, leak-tight connection between 10 mm OD tubing and a 3/8 inch male ISO tapered threaded port. This fitting is specifically engineered for critical fluid systems where space is limited and high-performance sealing is required.

90° Elbows

This 90-degree male tube connector creates a compact, angled connection between tubing and threaded ports, making it ideal for tight spaces in critical systems. Swagelok tube fittings are recognized for their exceptional reliability, proven over more than 65 years of successful application and documented in extensive testing under extreme conditions.

Specifications

Parameter	Value
Body Material	316 Stainless Steel
Connection 1 Size	10 mm
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	3/8 in.
Connection 2 Type	Male ISO Tapered Thread
Bored Through	No
Flow Restrictor	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
UNSPSC (17.1001)	40183101
eClass (10.1)	37020501

Safety and Installation

To ensure safe, trouble-free performance, the total system design must be considered. Material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Do not mix or interchange Swagelok products or components with those of other manufacturers, as they are not governed by the same industrial design standards.
