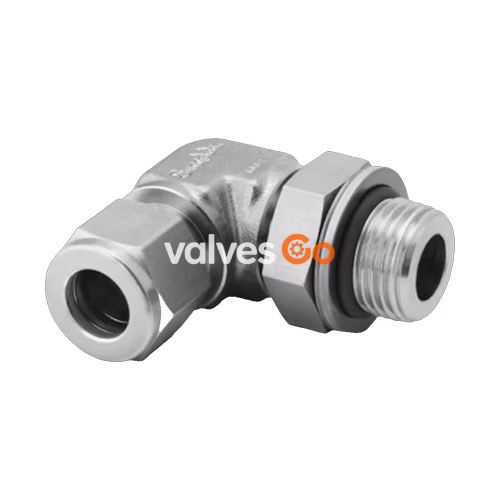

Swagelok SS-1210-2-8PR is a 316 stainless steel positionable male elbow designed for high-performance fluid systems. This 90-degree tube connector creates a compact, angled connection between 3/4 in. tubing and 1/2 in. threaded ports. The positionable design allows for precise alignment in tight spaces within critical industrial systems, ensuring efficient routing and reliable performance.

Technical Specifications

Feature	Details
Body Material	316 Stainless Steel
Connection 1 Size	3/4 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/2 in.
Connection 2 Type	Male ISO Parallel Thread
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Lubricant	Dow Corning 111
Bored Through	No
Flow Restrictor	No

90° Elbow Application

This 90-degree male tube connector is engineered to provide a robust connection between tubing and threaded ports. It is particularly well-suited for applications where space is limited and tubing must be redirected at a right angle without compromising flow integrity or system stability.

Safety and Installation

• Safe Selection: The total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
• Interchangeability: Do not mix or interchange Swagelok products or components with those of other manufacturers. Ensure all components are governed by appropriate industrial design standards.

Classification Data

• eClass (10.1): 37020501
• UNSPSC (15.1): 40183101
• UNSPSC (13.0601): 40183101
