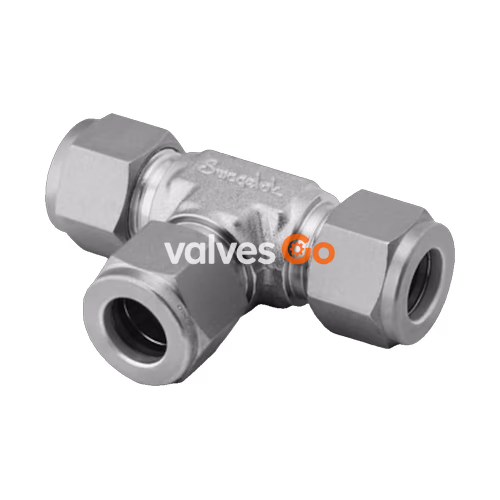

Swagelok SS-1610-3-16-8 is a 316 stainless steel reducing union tee designed to provide reliable, leak-tight connections in critical fluid systems. This fitting connects three tubing segments of varying sizes (1 in. and 1/2 in.) in a three-way configuration, making it ideal for branching flow in compact environments where space and performance are paramount.

Tees

Tee reducer fittings are engineered to connect tubing of varying sizes. This specific configuration allows for precise flow distribution while maintaining the structural integrity and vibration resistance required for industrial applications.

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Connection 1 Size	1 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1 in.
Connection 2 Type	Swagelok® Tube Fitting
Connection 3 Size	1/2 in.
Connection 3 Type	Swagelok® Tube Fitting
Bored Through	No
Flow Restrictor	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)

Identification Codes

Standard	Code
eClass (10.1)	37020506
UNSPSC (15.1)	40183102
UNSPSC (10.0)	40142615

WARNING

Do not mix or interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.

INFO

Proper system design is essential for safe, trouble-free performance. Function, material compatibility, adequate ratings, and proper installation are the responsibilities of the system designer and user.
