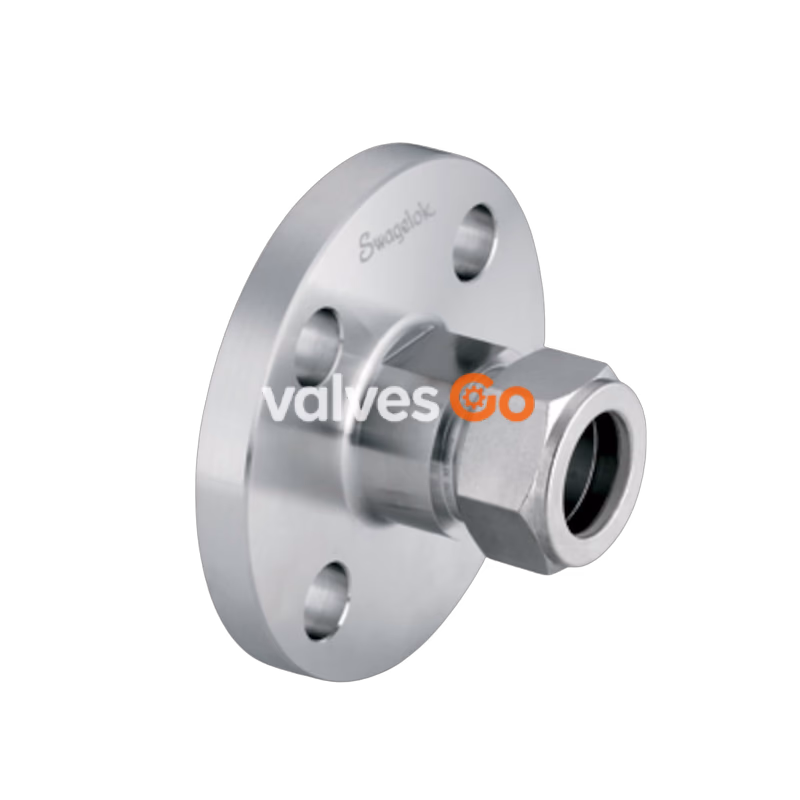

Swagelok SS-1610-F16-150 is a 316 stainless steel ANSI flange adapter designed to provide a smooth transition between piping systems and tubing. This straight fitting connects a 1-inch Swagelok tube fitting to an NPS 1 in., Class 150 ANSI flange, facilitating continuous flow and reliable integration in high-performance industrial environments.

The adapter features integrated wrench flats that simplify assembly and ensure gaugeability upon installation. These flanges are engineered to meet stringent international standards, including ASME, DIN EN, and JIS across various sizes and pressure classes. The use of high-grade 316 stainless steel ensures excellent corrosion resistance and material compatibility for standard process applications.

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Connection 1	1 in. Swagelok® Tube Fitting
Connection 2	NPS 1 in. ANSI Flange, Class 150
Flow Restrictor	No
Cleaning	Standard Cleaning and Packaging (SC-10)

Performance Features

• Standards Compliance: Fully compliant with ASME, DIN EN, and JIS requirements for industrial flange connections.
• Smooth Transition: Designed for continuous flow from nominal pipe sizes (NPS) to Swagelok卡套管 tubing systems.
• Ease of Assembly: Wrench flats allow for secure tightening and are designed for use with Swagelok gap inspection gauges to verify proper pull-up.

Installation and Gaugeability

Wrench flats are provided for easy assembly. The design ensures that the fitting can be gauged upon initial installation using a Swagelok gap inspection gauge to confirm that the fitting has been sufficiently tightened.

System Safety Note

System designers and users must consider the total system design to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Do not mix Swagelok products or components with those of other manufacturers not governed by industrial design standards.

Identification Codes

System	Code
eClass (10.1)	37020500
UNSPSC (15.1)	40173103
UNSPSC (10.0)	40142404
