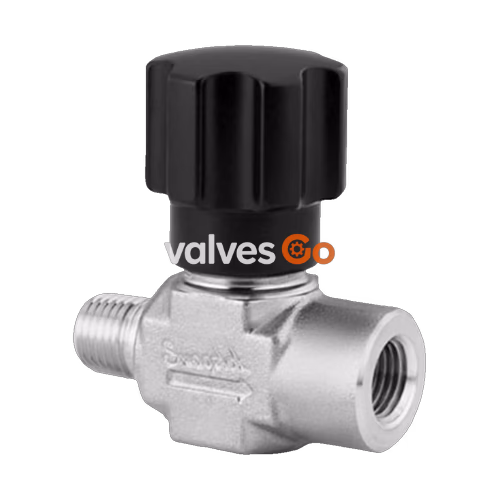

Swagelok SS-16DPM4-F4-BC-PD is a compact integral-bonnet needle valve designed for a variety of applications. It features a straight pattern, non-rotating stem, 316 stainless steel construction, and Buna C O-rings. This valve delivers a flow coefficient of 0.53 Cv and is equipped with 1/4 in. Male NPT to 1/4 in. Female NPT connections.

Specifications

Specification	Value
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/4 in.
Connection 1 Type	Male NPT
Connection 2 Size	1/4 in.
Connection 2 Type	Female NPT
Maximum Temperature, °F (°C)	150 (65)
Minimum Temperature, °F (°C)	-4 (-20)
eClass (4.1)	37010201
eClass (5.1.4)	37010201
eClass (6.0)	37010203
eClass (6.1)	37010203
eClass (10.1)	37010203
UNSPSC (4.03)	40141602
UNSPSC (10.0)	40141602
UNSPSC (11.0501)	40141602
UNSPSC (13.0601)	40141602
UNSPSC (15.1)	40141602
UNSPSC (17.1001)	40141600

System Design Responsibility

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Component Interchangeability

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
