316 Stainless Steel
Product Overview

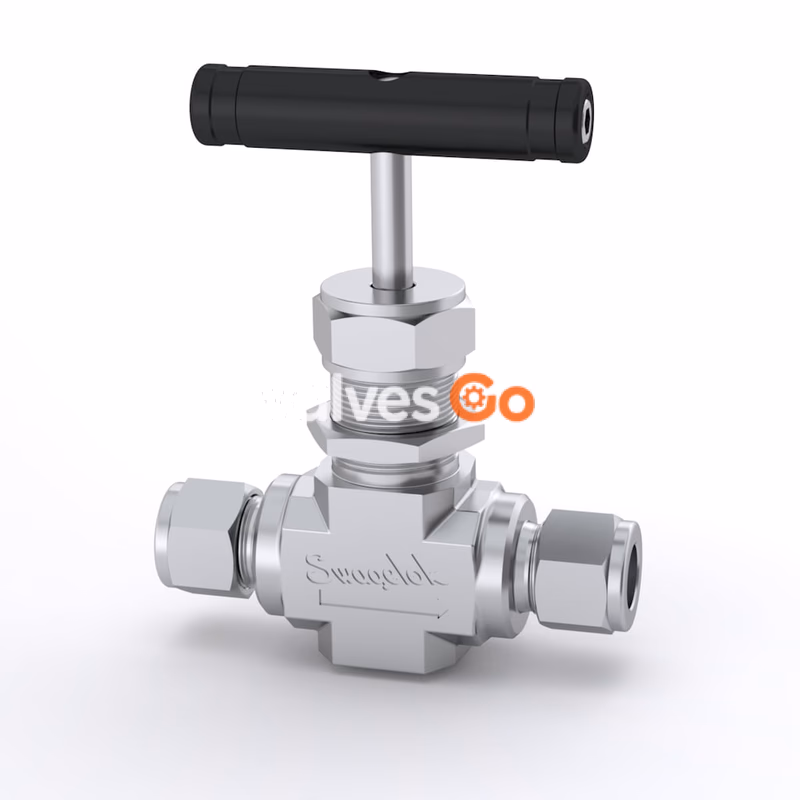

SS-18RS18MM is a Swagelok needle valve for instrumentation and process systems, with a 316 Stainless Steel body and 18 mm Swagelok® Tube Fitting x 18 mm Swagelok® Tube Fitting connections.
Core Features
- Part Number: SS-18RS18MM
- Body Material: 316 Stainless Steel
- Connection Configuration: 18 mm x Swagelok® Tube Fitting x 18 mm x Swagelok® Tube Fitting
- Cleaning Process: Standard Cleaning and Packaging (SC-10)
Detailed Technical Parameters
| Parameter | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 18 mm |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 18 mm |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 1.8 |
| Flow Pattern | Straight (2-way) |
| Handle Style | Aluminum Bar |
| Low Emissions Certified | Yes |
| Maximum Temperature, °F (°C) | 600 (315) |
| Max Temperature Pressure Rating | 600°F @ 3130 PSIG /315°C @ 215 BAR |
| Minimum Temperature, °F (°C) | -65 (-53) |
| Orifice | 0.375 in |
| Room Temperature Pressure Rating | 5000 PSIG @ 100°F /344 BAR @ 37°C |
| Stem Tip Material | 316 Stainless Steel |
| Stem Type | Regulating |
| eClass (4.1) | 37010201 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37010203 |
| eClass (6.1) | 37010203 |
| eClass (10.1) | 37010203 |
| UNSPSC (4.03) | 40141602 |
| UNSPSC (10.0) | 40141602 |
