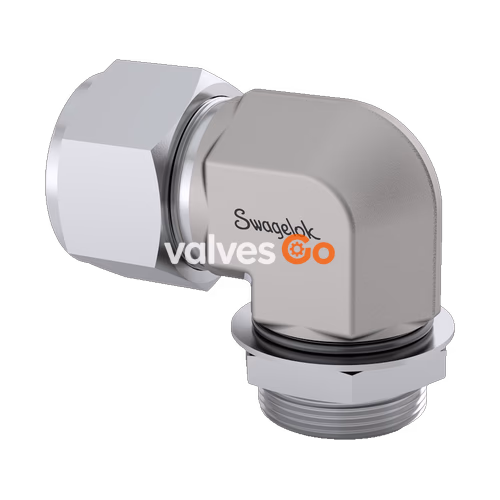

Swagelok SS-2000-2-20ST is a 316 stainless steel positionable male elbow tube fitting. This 90-degree male tube connector creates a compact, angled connection between tubing and threaded ports, making it ideal for tight spaces in critical systems. It provides strong tube grip and vibration resistance to ensure reliable sealing performance, backed by over 65 years of proven reliability and extensive testing under extreme conditions.

System Design & Safety

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Intermixing Hazard

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.

Specifications

Specification	Value
Body Material	316 Stainless Steel
Bored Through	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1 1/4 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1 5/8-12 in.
Connection 2 Type	SAE/MS Straight Thread
Flow Restrictor	No
eClass (4.1)	37020715
eClass (5.1.4)	37020501
eClass (6.0)	37020501
eClass (6.1)	37020501
eClass (10.1)	37020501
UNSPSC (4.03)	40142603
UNSPSC (10.0)	40142613
UNSPSC (11.0501)	40142604
UNSPSC (13.0601)	40183101
UNSPSC (15.1)	40183101
UNSPSC (17.1001)	40183101
