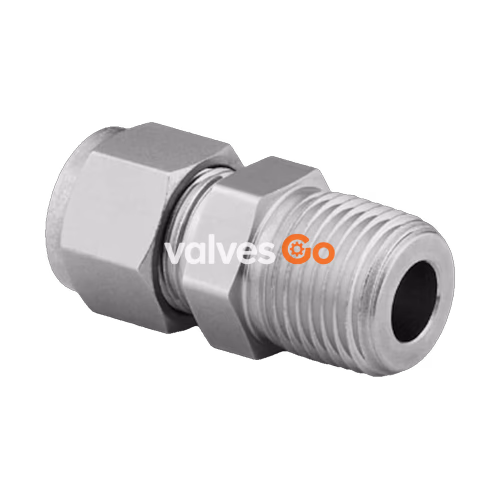

Swagelok SS-2400-1-20 is a 316 stainless steel tube fitting male connector designed to provide secure, leak-tight connections between 1 1/2 in. tubing and 1 1/4 in. NPT threaded ports. This straight fitting is engineered for use in critical fluid systems where reliability and performance are paramount.

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Connection 1	1 1/2 in. Swagelok® Tube Fitting
Connection 2	1 1/4 in. Male NPT
Cleaning	Standard Cleaning and Packaging (SC-10)
Bored Through	No
Flow Restrictor	No

Performance and Reliability

The Swagelok male tube connector enables secure connections between tubing and threaded ports. Swagelok tube fittings are recognized for their exceptional reliability, proven over more than 65 years of successful performance. They are designed to provide consistent sealing even in extreme conditions and high-vibration environments.

Industry Identifiers

• eClass (10.1): 37020590
• UNSPSC (17.1001): 40183110

Safety and Compatibility

• System Design: The total system design must be considered to ensure safe, trouble-free performance. Material compatibility, adequate ratings, and proper installation are the responsibilities of the system designer and user.
• Interchangeability: Do not mix or interchange Swagelok products or components with those of other manufacturers. Swagelok tube fitting end connections are not governed by the same industrial design standards as other brands.
