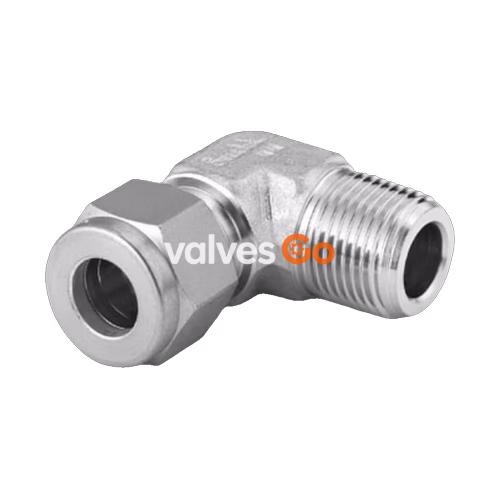

Swagelok SS-25M0-2-16 is a 316 stainless steel male elbow tube fitting designed to provide a secure, leak-tight connection between 25 mm fractional tubing and a 1 in. female NPT port. This 90-degree connector is engineered for critical fluid system applications where reliability and vibration resistance are paramount.

90° Elbows

This 90-degree male tube connector creates a compact, angled connection between tubing and threaded ports, making it ideal for tight spaces in critical systems. The design ensures a robust grip on the tubing, maintaining system integrity under various operating conditions.

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Bored Through	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	25 mm
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1 in.
Connection 2 Type	Male NPT
Flow Restrictor	No

Identification Codes

System	Code
eClass (10.1)	37020501
UNSPSC (17.1001)	40183101

Safe Product Selection

When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Installation Caution

Do not mix or interchange Swagelok products or components with those of other manufacturers. Swagelok tube fitting end connections are not governed by the same industrial design standards as other brands, and mixing components can compromise system safety.
