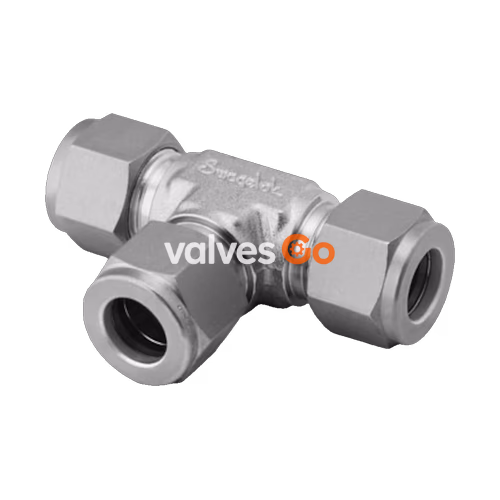

Swagelok SS-28M0-3 is a high-performance union tee tube fitting constructed from 316 stainless steel, designed specifically for 28 mm outside diameter (OD) tubing. As a critical component in industrial fluid systems, this union tee enables precise three-way branching, allowing for efficient flow distribution while maintaining a compact footprint.

Core Features

• Leak-Tight Reliability: Engineered to provide consistent, leak-proof performance in demanding applications.
• Precise Alignment: Ensures accurate branching of tube lines for streamlined system layouts.
• High Performance: Optimized for systems requiring durable, vibration-resistant connections.
• Standardized Cleaning: Processed according to Swagelok Standard Cleaning and Packaging (SC-10).

Technical Specifications

Attribute	Detail
Body Material	316 Stainless Steel
Connection 1/2/3 Size	28 mm
Connection Type	Swagelok® Tube Fitting
Bored Through	No
Flow Restrictor	No
Cleaning Process	SC-10 Standard

Product Selection and Safety

When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Do not mix or interchange Swagelok products or components not governed by industrial design standards with those of other manufacturers.

Identification Codes

• UNSPSC (17.1001): 40183102
• eClass (10.1): 37020506
• eClass (4.1): 37020716
