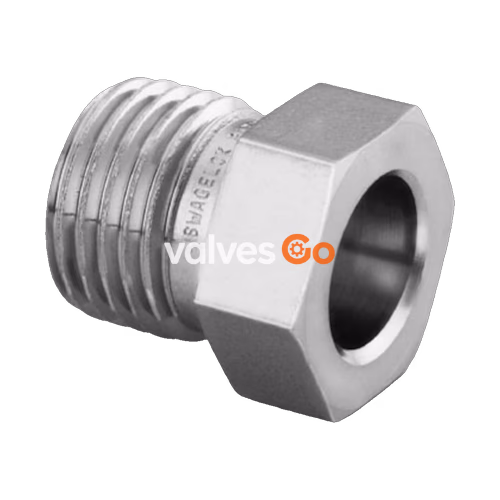

Swagelok SS-4-HVCR-4SR is a 316 stainless steel high-flow VCR metal gasket face seal fitting male nut designed for 1/4 inch connections. This component is engineered specifically for high-purity and high-vacuum systems where high flow capacity is required. It undergoes the Swagelok Standard Cleaning and Packaging process (SC-10) to ensure compatibility with sensitive industrial environments.

Technical Specifications

Specification	Details
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/4 in.
Connection 1 Type	Male High-Flow VCR® Metal Gasket Face Seal Fitting
Application Feature	For high flow applications
Flow Restrictor	None

Male Nut Design Features

The male nut is a critical component of the VCR face seal system, ensuring reliable and repeatable torque during installation. In metal gasket face seal systems, it provides a secure, leak-tight seal essential for high-purity fluid delivery and vacuum integrity.

Performance Note

The VCR® design allows for a metal-to-metal seal that maintains high purity while providing a robust connection for demanding high-flow applications.

System Safety and Compatibility

Safety Requirement

Total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Do not mix or interchange Swagelok products or components not governed by industrial design standards with those of other manufacturers. This includes Swagelok tube fitting end connections, which are specifically designed to work as an integrated system.
