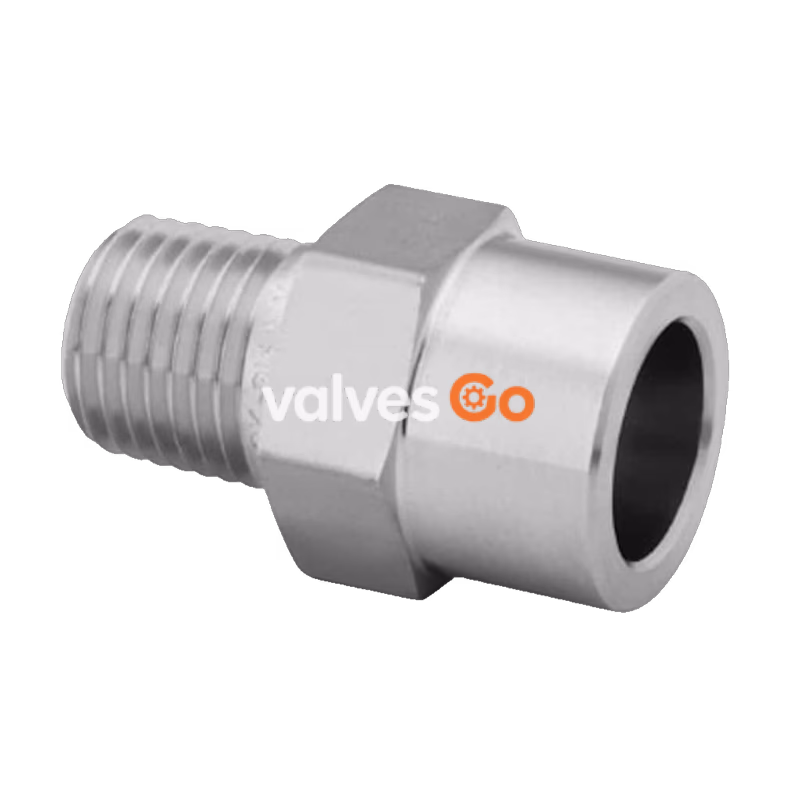

Swagelok SS-4-TSW-1-4 is a 316 stainless steel tube socket weld male connector designed for high-strength, permanent connections in fluid systems. This straight fitting provides a clean transition from 1/4 inch tubing via socket weld to a 1/4 inch male NPT pipe connection. Built for strength and purity, it ensures minimal flow disruption in compact welded systems, making it suitable for applications requiring high reliability and leak-tight performance.

Features

Built for strength and purity, this socket weld straight fitting delivers clean, secure connections in compact welded systems with minimal flow disruption. It is processed with Swagelok Standard Cleaning and Packaging (SC-10) to ensure system integrity.

Technical Specifications

Specification	Details
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/4 in.
Connection 1 Type	Tube Socket Weld
Connection 2 Size	1/4 in.
Connection 2 Type	Male NPT
Flow Restrictor	No

Technical Classifications

Classification System	Value
eClass (10.1)	37020590
UNSPSC (10.0)	40142605
UNSPSC (17.1001)	40183110
UNSPSC (13.0601)	40183110
UNSPSC (15.1)	40183110

System Safety and Selection

When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. The complete catalog contents must be reviewed to ensure a safe product selection.
