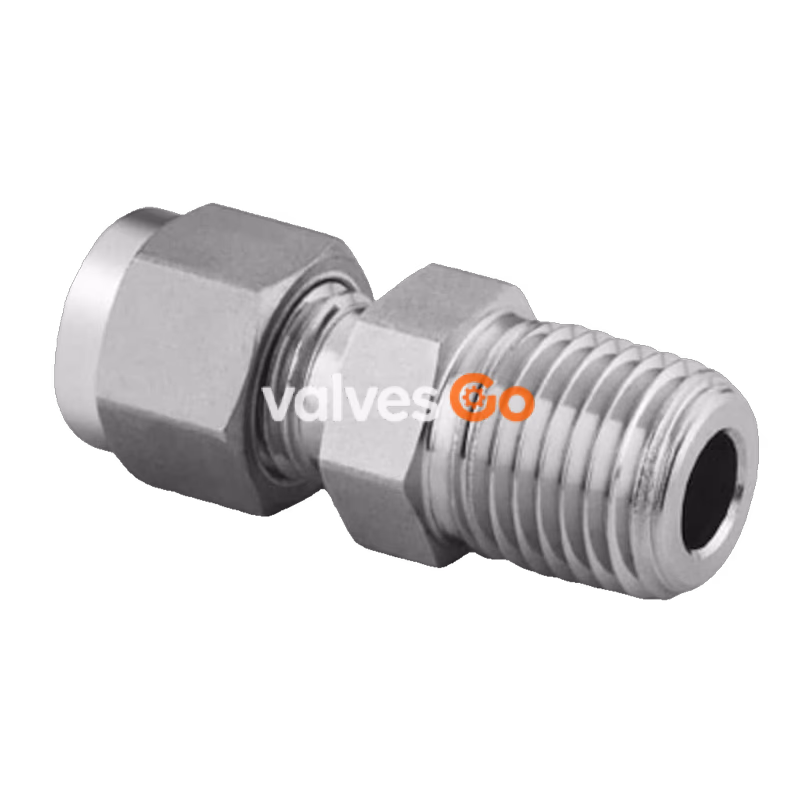

Swagelok SS-400-1-6 stainless steel male connector enables secure connections between tubing and threaded ports. This straight male connector is designed for use in critical fluid systems where high-performance, leak-tight connections are required.

Specifications

Attribute	Value
Body Material	316 Stainless Steel
Connection 1 Size	1/4 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	3/8 in.
Connection 2 Type	Male NPT
Bored Through	No
Flow Restrictor	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)

Design Features

The Swagelok tube fitting provides a leak-tight, gas-tight seal in an easy-to-install, disassemble, and reassemble design. It is engineered to provide reliable performance even in extreme conditions, backed by over 65 years of successful field experience and extensive testing.

Usage and Safety

Safety and Compatibility

• Do not mix or interchange Swagelok products or components with those of other manufacturers. Components not governed by industrial design standards, including Swagelok tube fitting end connections, must remain brand-consistent to ensure safe performance.
• System Design Responsibility: The system designer and user are responsible for the total system design, ensuring material compatibility, adequate ratings, and proper installation. Always review the complete catalog for safe product selection.

Technical Identifiers

• eClass (10.1): 37020590
• UNSPSC (15.1): 40183110
• UNSPSC (10.0): 40142613
