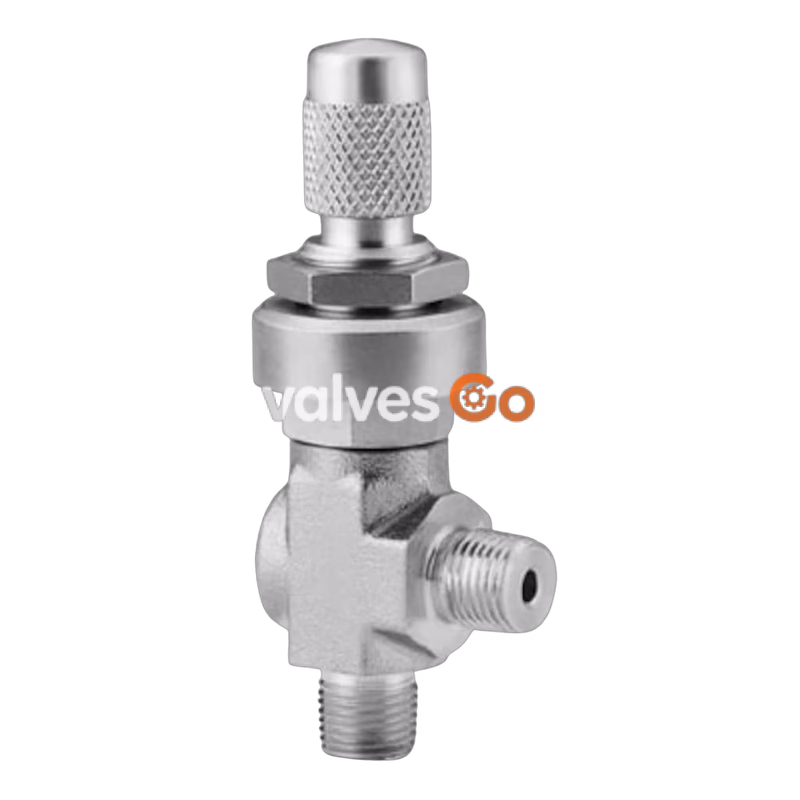

Swagelok SS-4MA2 medium flow angle pattern metering valve delivers accurate flow control when it matters most in analytical or research applications. This 316 stainless steel valve is designed to make fine adjustments across low- or high-pressure systems and is suitable for low, medium, or high flow conditions depending on system requirements.

Technical Specifications

Specification	Details
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/4 in.
Connection 1 Type	Male NPT
Connection 2 Size	1/4 in.
Connection 2 Type	Male NPT
Cv Maximum	0.03
Flow Pattern	Angle Pattern (2-way)
Handle Style	Knurled
Maximum Temperature	400°F (204°C)
Minimum Temperature	-10°F (-23°C)

Industrial Classifications

INFO

• eClass (10.1): 37010203
• UNSPSC (15.1): 40141600
• UNSPSC (17.1001): 40183103

Selection and Safety

WARNING

Proper product selection is the responsibility of the system designer and user. The total system design must be considered to ensure safe, trouble-free performance. Factors such as function, material compatibility, adequate ratings, and proper installation/maintenance are critical.

Product Integrity

Do not mix or interchange Swagelok products or components with those of other manufacturers to ensure system integrity and performance standards are maintained.
