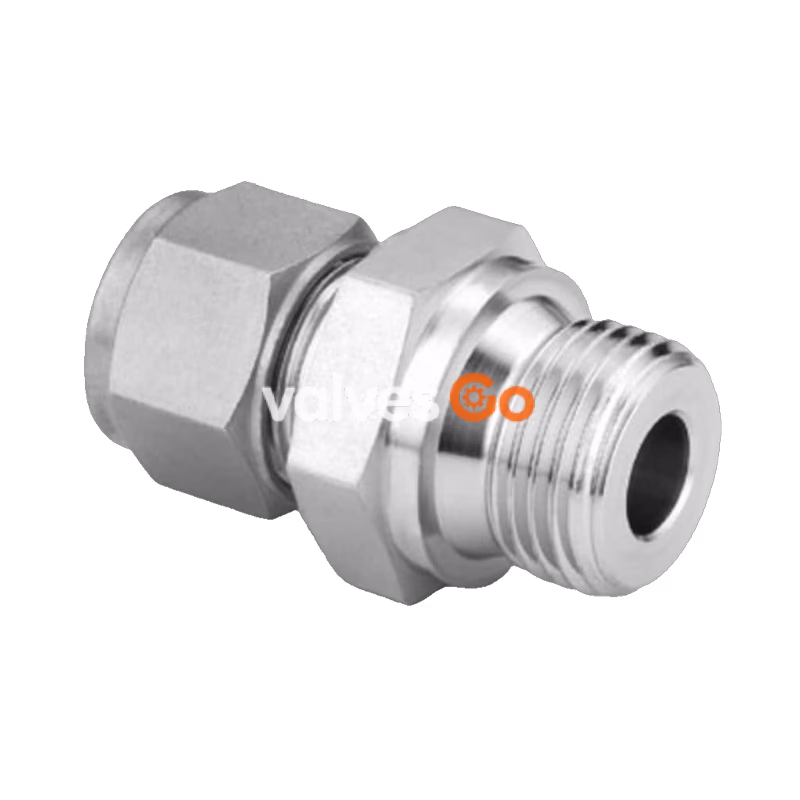

Swagelok SS-6M0-1-4RS is a 316 stainless steel male connector tube fitting designed for 6 mm tube OD and 1/4 in. male ISO parallel thread with a straight shoulder. This male tube connector enables secure, leak-tight connections between tubing and threaded ports, making it ideal for critical fluid systems and demanding industrial applications.

Performance and Reliability

The Swagelok tube fitting provides a secure tube grip and powerful vibration resistance, ensuring consistent sealing performance. The reliability of these fittings has been proven over 65 years of successful use and documented in extensive public test reports, including testing performed under extreme conditions.

Technical Specifications

Feature	Details
Material	316 Stainless Steel
End Connection 1	6 mm Swagelok Tube Fitting
End Connection 2	1/4 in. Male ISO Parallel Thread (RS Shoulder)
Bored Through	No
Cleaning	Standard Cleaning and Packaging (SC-10)

Standard Identifiers

• UNSPSC (13.0601): 40183110
• eClass (10.1): 37020590
• UNSPSC (10.0): 40142613

Safe Product Selection

When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Do not mix or interchange Swagelok products or components with those of other manufacturers.
