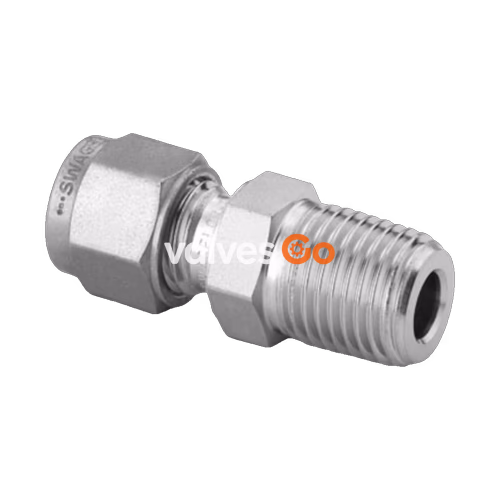

Swagelok SS-6M0-1-4RTBT is a 316 stainless steel bored-through male connector designed to enable secure connections between tubing and threaded ports. It is ideal for critical fluid systems that require highly reliable performance and strong vibration resistance.

Specifications

Specification	Value
Body Material	316 Stainless Steel
Bored Through	Yes
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	6 mm
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/4 in.
Connection 2 Type	Male ISO Tapered Thread
Feature	Bored Through
Flow Restrictor	No
eClass (4.1)	37020713
eClass (5.1.4)	37020590
eClass (6.0)	37020590
eClass (6.1)	37020590
eClass (10.1)	37020590
UNSPSC (4.03)	40141720
UNSPSC (10.0)	40142613
UNSPSC (11.0501)	40142613
UNSPSC (13.0601)	40183110
UNSPSC (15.1)	40183110
UNSPSC (17.1001)	40183110

Safe Product Selection

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Interchangeability Warning

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
