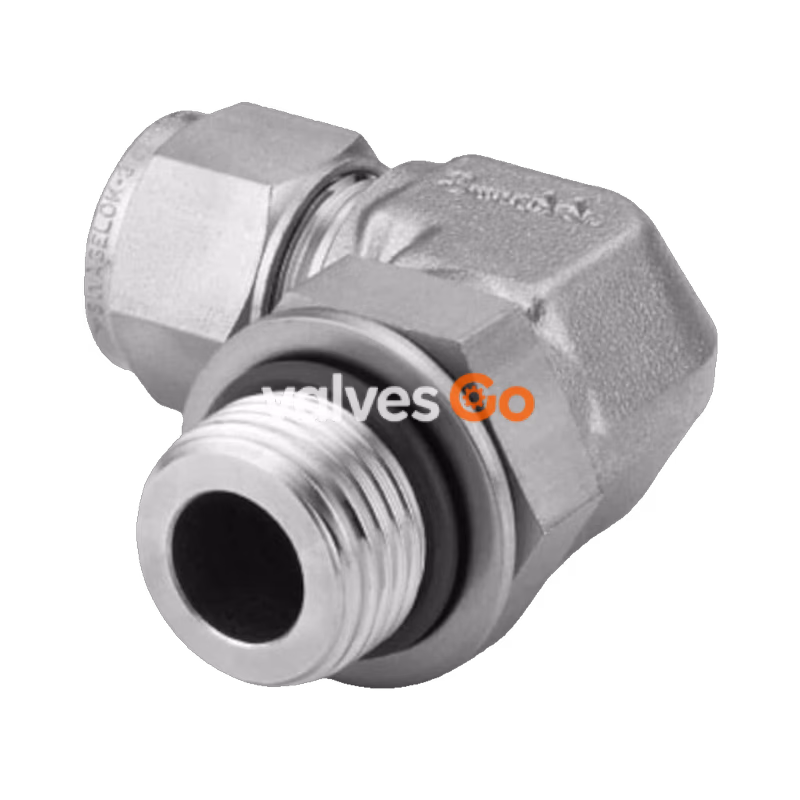

Swagelok SS-6M0-2-4PR is a high-performance 316 stainless steel positionable male elbow designed to provide a secure, leak-tight connection between 6 mm fractional tubing and 1/4 in. male ISO parallel threaded ports. This 90-degree fitting is engineered for critical fluid systems where space is limited and precise orientation is required.

Technical Specifications

Specification	Details
Body Material	316 Stainless Steel
Connection 1 Size	6 mm
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/4 in.
Connection 2 Type	Male ISO Parallel Thread
Bored Through	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Lubricant	Dow Corning 111
Flow Restrictor	No

90° Elbow Design

This 90-degree male tube connector is optimized for creating compact, angled connections. It is particularly suitable for applications with tight spatial constraints in critical systems, ensuring reliable performance and ease of installation.

System Safety and Integrity

Selection and Installation

Proper product selection is the responsibility of the system designer and user. The total system design must be considered to ensure safe, trouble-free performance. Factors such as function, material compatibility, adequate ratings, proper installation, operation, and maintenance are critical.

Mixing and Interchangeability

Do not mix or interchange Swagelok products or components with those of other manufacturers. Swagelok tube fitting end connections are not governed by the same industrial design standards as other brands, and mixing components can compromise system integrity.
