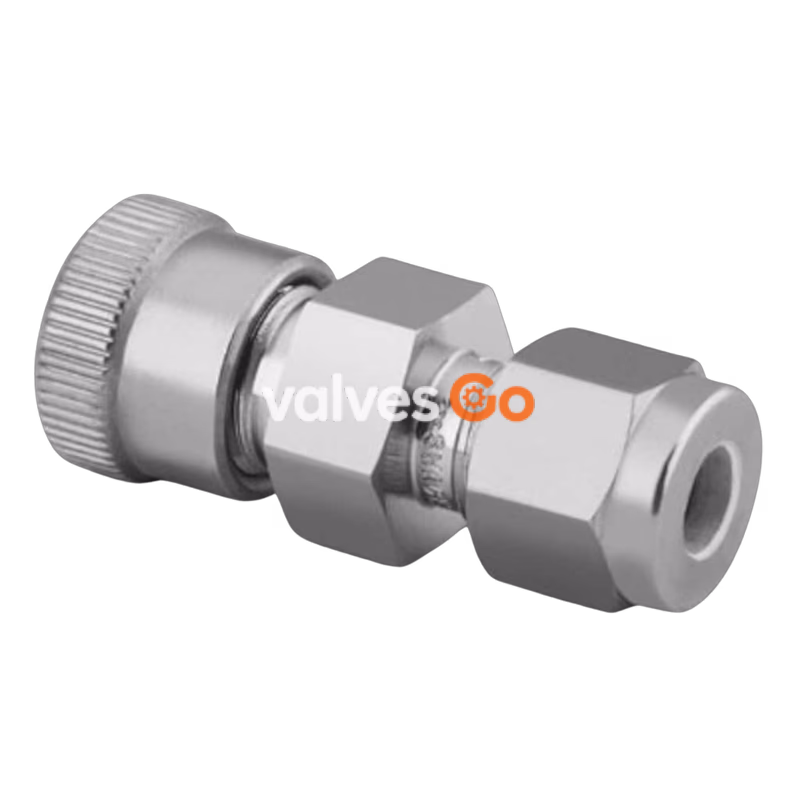

Swagelok SS-8-UT-6-810 is a 316 stainless steel union fitting designed to enable vacuum-tight tube-to-tube connections. This component bridges a 1/2 inch Ultra-Torr vacuum fitting with a 1/2 inch Swagelok tube fitting, providing a reliable interface for high-purity and analytical systems. Its design ensures repeatable assembly and flexible maintenance in demanding vacuum environments.

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Connection 1	1/2 in. Ultra-Torr® Vacuum Fitting
Connection 2	1/2 in. Swagelok® Tube Fitting
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Bored Through	No
Flow Restrictor	No

Industrial Identification

System	Code
eClass (10.1)	37020500
UNSPSC (15.1)	40183107
UNSPSC (17.1001)	40183103

Cleaning Standards

This fitting undergoes Swagelok Standard Cleaning and Packaging (SC-10) to ensure suitability for general industrial and analytical applications.

Safety and Compatibility

Do not mix or interchange Swagelok products or components with those of other manufacturers. Ensure that the total system design is considered for safe, trouble-free performance, including material compatibility and adequate pressure/temperature ratings.
