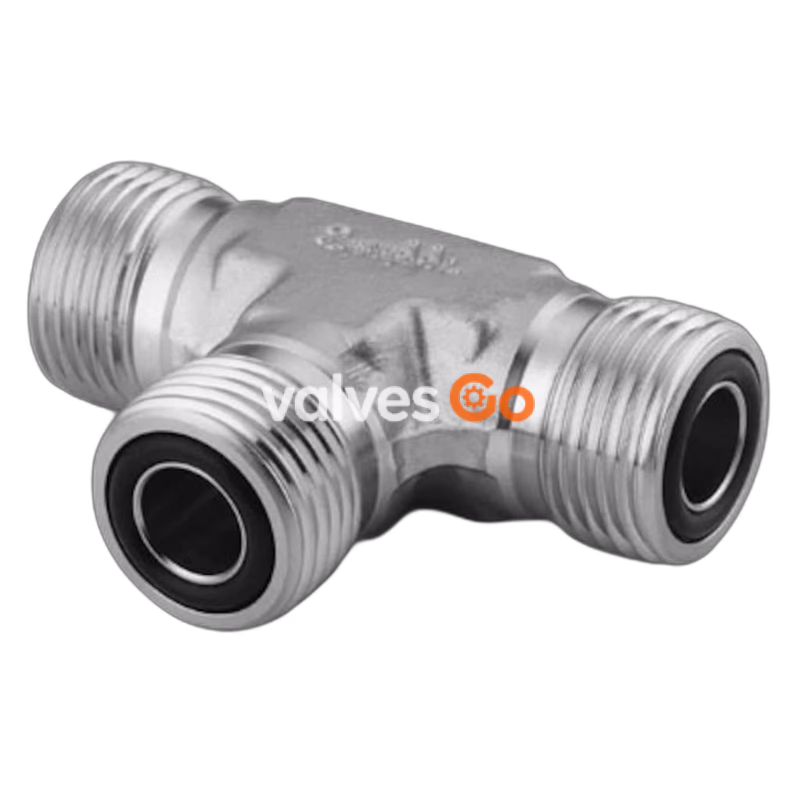

Swagelok SS-8-VCO-T is a high-performance 316 stainless steel tee union utilizing the VCO O-ring face seal design. Engineered for modular fluid routing, this 1/2 inch fitting enables compact and high-integrity branching in precision instrumentation and process systems. The VCO design allows for easy installation and maintenance in tight spaces where traditional tube fittings might be difficult to maneuver.

Key Features

• High Integrity Seal: Utilizes an O-ring face seal for leak-tight performance in vacuum or high-pressure applications.
• Compact Design: The modular nature of VCO fittings allows for streamlined system layouts and minimal rework.
• 316 Stainless Steel Construction: Provides excellent corrosion resistance and durability for industrial environments.
• Zero Clearance: VCO connections allow for components to be removed and replaced without the need for axial clearance or significant piping disassembly.

Technical Specifications

Attribute	Detail
Body Material	316 Stainless Steel
Connections (1, 2, 3)	1/2 in. VCO® O-Ring Face Seal
Cleaning	Standard Cleaning and Packaging (SC-10)
Flow Restrictor	None
Structure	Tee Union

Cleaning and Packaging

This product is processed according to Swagelok Standard Cleaning and Packaging (SC-10), ensuring it meets standard industrial requirements for cleanliness.

Safety and Compatibility

Do not mix or interchange Swagelok products or components with those of other manufacturers. Total system design must be considered to ensure safe, trouble-free performance, including material compatibility and adequate pressure/temperature ratings.

Classification Data

• eClass (10.1): 37020506
• UNSPSC (15.1): 40183102
