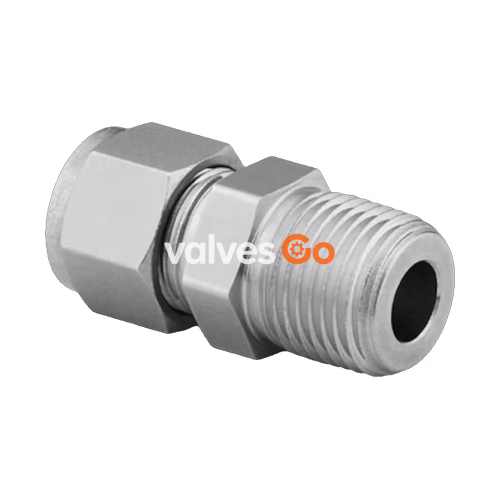

Swagelok SS-810-1-8-52167 is a 316 stainless steel male connector tube fitting designed to provide secure, leak-tight connections between 1/2 inch tubing and 1/2 inch female NPT ports. With an extended overall length of 6 inches, this straight connector is engineered for use in critical fluid systems where reliability and precision are paramount.

Features and Performance

As part of the Swagelok straights family, this male tube connector enables secure connections between tubing and threaded ports. It is particularly well-suited for high-pressure and vibration-prone environments. The Swagelok tube fitting design has established a reputation for reliability through over 65 years of successful application in extreme conditions, supported by extensive testing and documentation.

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Bored Through	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/2 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/2 in.
Connection 2 Type	Male NPT
Flow Restrictor	No
Length	6 in.
UNSPSC (17.1001)	40183110

Safety and Installation

• Interchangeability: Do not mix or interchange Swagelok products or components with those of other manufacturers. Components not governed by industrial design standards must remain within the Swagelok system to ensure performance.
• System Selection: The total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
