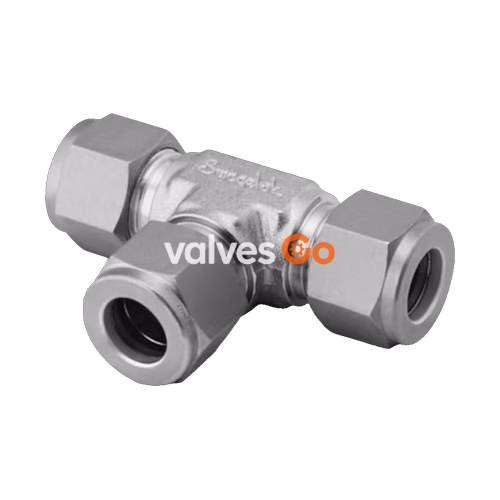

Swagelok SS-810-3 is a high-performance stainless steel union tee tube fitting, constructed from 316 stainless steel and designed for 1/2 in. tube OD connections across all three ports. This fitting enables precise three-way branching with exceptional leak-tight reliability and vibration resistance. Proven over 65 years of successful field application in extreme conditions, it is ideal for distributing flow in compact, high-performance fluid systems where safety and performance are critical.

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Connection 1/2/3 Size	1/2 in.
Connection 1/2/3 Type	Swagelok® Tube Fitting
Bored Through	No
Flow Restrictor	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
eClass (10.1)	37020506
UNSPSC (13.0601)	40183102

Performance and Design

Designed as a union tee, the SS-810-3 enables three-way tube branching with precise alignment. The Swagelok design provides a robust tube grip and strong vibration resistance, ensuring consistent sealing performance even in demanding environments.

Performance Reliability

The reliability of Swagelok tube fittings is documented in extensive public test reports, confirming their performance in high-pressure and extreme temperature applications.

Installation and System Safety

Proper selection and installation are essential for the safe, trouble-free performance of fluid systems.

Compatibility Notice

Do not mix or interchange Swagelok products or components with those of other manufacturers. Swagelok tube fitting end connections are not governed by the same industrial design standards as generic fittings, and intermixing can compromise system integrity.

System designers must consider material compatibility, adequate ratings, and proper maintenance when selecting components to ensure total system safety.
