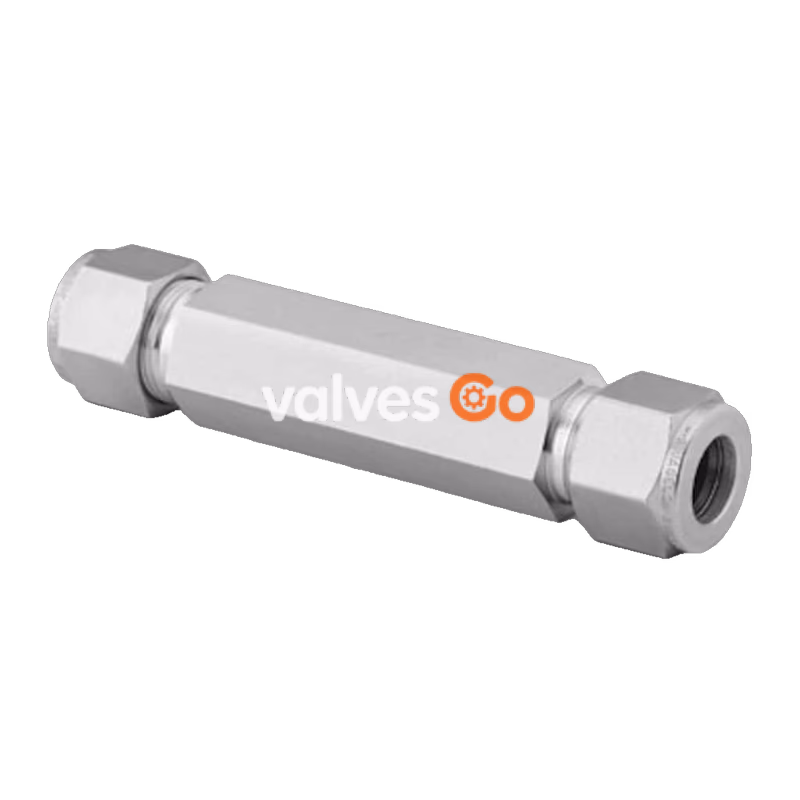

Swagelok SS-810-6-0030 is a 316 stainless steel bored-through union fitting designed for 1/2 inch tube outer diameter (OD) connections. It provides a robust, leak-tight tube-to-tube connection ideal for maintaining flow integrity in linear system layouts and applications where passing a tube through the fitting body is required.

Straight Configuration

The straight union design provides robust, leak-tight connections for linear tube systems. These fittings are engineered for reliability in demanding industrial environments, ensuring consistent performance and resistance to vibration.

Technical Specifications

Feature	Specification
Body Material	316 Stainless Steel
Bored Through	Yes
Connection 1	1/2 in. Swagelok® Tube Fitting
Connection 2	1/2 in. Swagelok® Tube Fitting
Overall Length	3.5 in.
Flow Restrictor	No
Cleaning	Standard Cleaning and Packaging (SC-10)

Classification Data

System	Code
eClass (10.1)	37020590
UNSPSC (17.1001)	40183103

Product Selection and Safety

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Do not mix or interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
