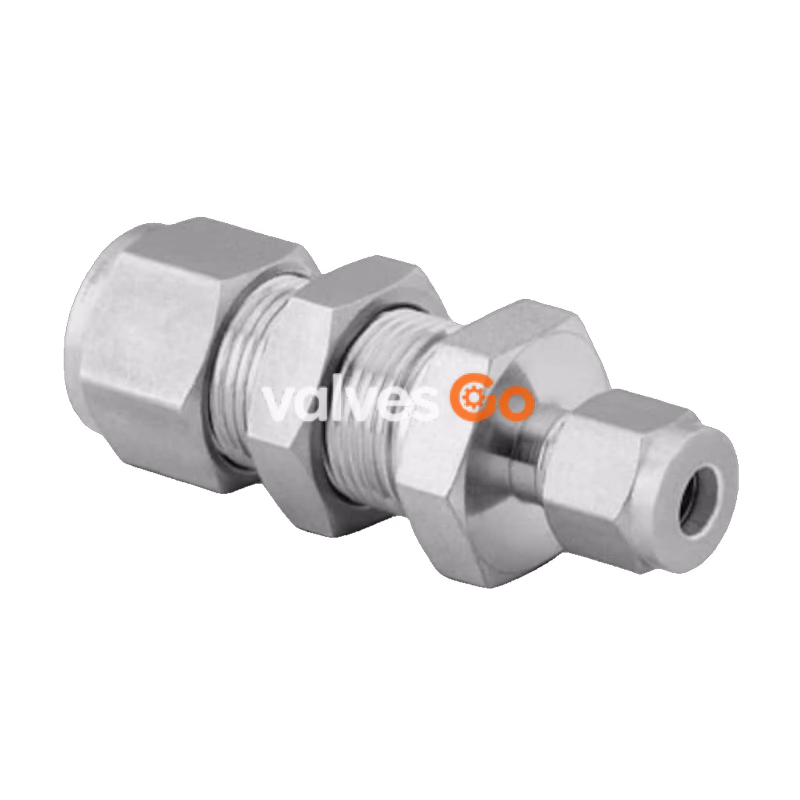

Swagelok SS-810-61-6 is a 316 stainless steel bulkhead reducing union designed to provide secure, leak-tight tube connections through panels or enclosures. This straight bulkhead fitting is ideal for critical fluid systems requiring clean and sealed transitions between 1/2 inch and 3/8 inch tube sizes.

Technical Features

Straight bulkhead fittings enable stable tube gripping and high vibration resistance, ensuring consistent sealing performance in demanding applications. The dual-ferrule design provides a reliable mechanical grip that has been proven over decades of field service, including testing under extreme conditions.

Specifications

Specification	Detail
Body Material	316 Stainless Steel
Connection 1 Size	1/2 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	3/8 in.
Connection 2 Type	Swagelok® Tube Fitting
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Bored Through	No
Flow Restrictor	No

Identifiers

System	Code
eClass (10.1)	37020590
UNSPSC (17.1001)	40183103
UNSPSC (13.0601)	40183100

Safety and Compatibility

Do not mix or interchange Swagelok products or components with those of other manufacturers. Total system design must be considered to ensure safe, trouble-free performance. Material compatibility, proper installation, and maintenance are the responsibilities of the system designer and user.
