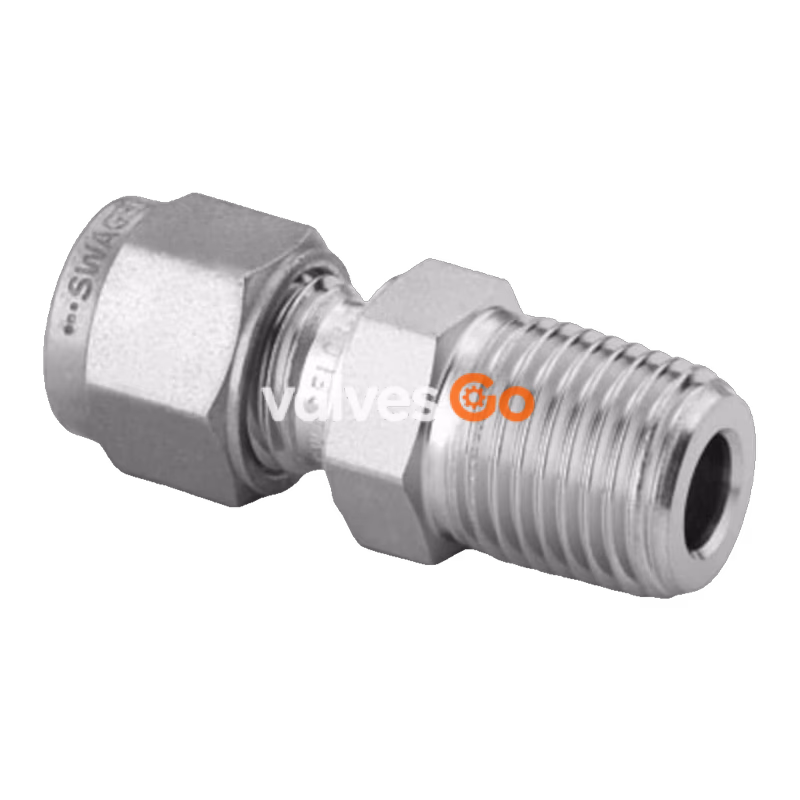

Swagelok SS-8M0-1-4RT is a 316 stainless steel male connector designed for secure connections between 8 mm tubing and 1/4 in. ISO tapered threaded ports. As a straight fitting, it is engineered for use in critical fluid systems where reliable, leak-tight performance is essential. The fitting undergoes Swagelok's Standard Cleaning and Packaging (SC-10) process to ensure system integrity.

Specifications

Specification	Details
Body Material	316 Stainless Steel
Connection 1	8 mm Swagelok® Tube Fitting
Connection 2	1/4 in. Male ISO Tapered Thread
Bored Through	No
Cleaning	Standard Cleaning and Packaging (SC-10)
Flow Restrictor	No

Reliability and Performance

This male tube connector enables secure connections between tubing and threaded ports. Swagelok tube fittings provide a leak-tight seal and are designed to withstand high-pressure and vibration-heavy environments, a reliability proven through over 65 years of successful application in extreme conditions.

Safety and Installation

• System Design: The total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
• Interchangeability: Do not mix or interchange Swagelok products or components with those of other manufacturers. Swagelok components are not governed by the same industrial design standards as other brands, and mixing them can compromise system safety.

Classification Data

Standard	Code
eClass (10.1)	37020590
UNSPSC (17.1001)	40183110
UNSPSC (10.0)	40142613
