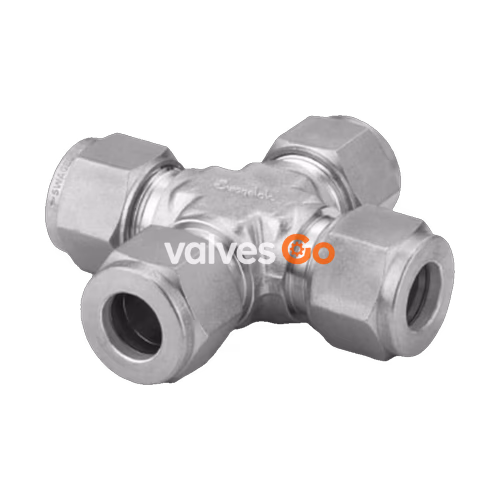

Swagelok SS-8M0-4 is a high-performance union cross tube fitting manufactured from 316 stainless steel, specifically designed for 8 mm tube outer diameter (OD) connections. As a critical component for complex fluid system routing, this union cross enables four-way tube connections with precise alignment and leak-tight performance in compact designs.

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Connections 1-4	8 mm Swagelok® Tube Fitting
Bored Through	No
Flow Restrictor	No
Cleaning	Standard Cleaning and Packaging (SC-10)

Design Features

Union crosses are ideal for compact fluid systems where space is limited but multiple routing directions are required. The Swagelok tube fitting design ensures a secure, leak-tight seal and strong vibration resistance, which has been proven through decades of performance in extreme conditions.

Safety and Compatibility

Do not mix or interchange Swagelok products or components with those of other manufacturers. The system designer and user are responsible for selecting products that ensure safe, trouble-free performance based on the total system design, material compatibility, and adequate ratings.

Product Identifiers

Standard	Code
eClass (10.1)	37020590
UNSPSC (17.1001)	40183111
UNSPSC (11.0501)	40142614
