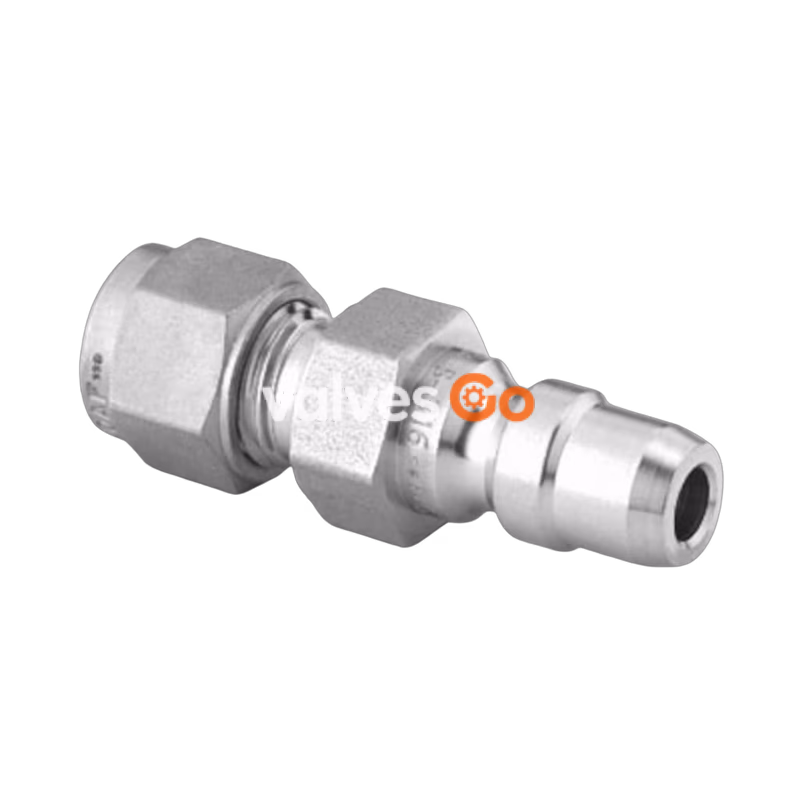

Swagelok SS-QF4-S-6M0 is a QF4 series stainless steel full-flow quick-connect stem designed for unrestricted flow in transfer, drain, and vent systems. This stem is supplied without a valve, ensuring maximum flow capacity with a 2.2 Cv when coupled with a corresponding body. Constructed from 316 stainless steel with a fluorocarbon FKM O-ring, it provides high chemical resistance and durability in demanding industrial environments.

Technical Performance

The SS-QF4-S-6M0 is rated for high-pressure applications, supporting up to 6000 PSIG (413 BAR) at room temperature. For elevated temperature service, it maintains a pressure rating of 100 PSIG (6.8 BAR) at 400 °F (204 °C). The component undergoes Swagelok's Standard Cleaning and Packaging (SC-10) and is assembled without lubricants on any components to prevent system contamination.

Specifications

Attribute	Specification
Series	QF4
Body Material	316 Stainless Steel
Connection Type	6 mm Swagelok® Tube Fitting
Flow Coefficient (Cv)	2.2 (when coupled)
O-Ring Material	Fluorocarbon FKM
Lubrication	None
Cleaning	SC-10 Standard Cleaning

System Selection

To ensure safe and trouble-free performance, the total system design must be considered. Function, material compatibility, adequate ratings, and proper installation are the responsibilities of the system designer and user. Do not mix Swagelok products or components with those of other manufacturers.
