About This Guide
This catalog contains 483 Spirax Sarco spare parts with standard MPN (Manufacturer Part Number) codes, organized by product category for easy reference.
Quick Navigation
| Category | Products Covered |
|---|---|
| Steam Traps | FT14, FTGS14, FT43/44/46/47, BPC32, TD42, SM32 |
| Globe Valves | BSA Series, KB31/KB33 |
| Control Valves | Gasket Kits, Stem Seals, Plug & Seat |
| Pressure Reducing Valves | 25P, DP27, DP143, BRV2/7 |
| Actuators | PN9 Series, PF51G, PF61 |

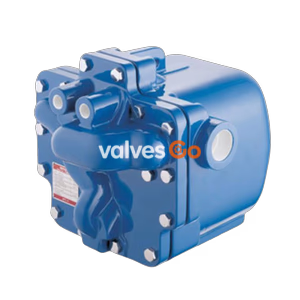

| Pumps | MFP14, APT14 |
| Filters | FIG Series |
Steam Trap Spare Parts
Float Steam Traps - FTGS14/FT14
| Spare Part Name | MPN |
|---|---|
| AIR VENT ASSY(1/2 - SUB), FOR 1/2" - 2" DN15 - DN50 FT (UP to 21 BARG) | 0836082001 |
| Main valve assy with float for 1/2" - 3", DN15 - DN20 FTGS14 - 4.5 | 1440080 |
| Cover gasket set (Pkt of 3) for 1/2" - 3", DN15 - DN25 FTGS14/CA14/AE14 | 1440081 |
| Air vent assy for 1/2" - 4", DN15 - DN50 FTGS14/FT32 (up to 21 bar) | 1440085 |
| Maintenance kit for 1/2" - 3", DN15 - DN20 FTGS14 - 4.5 | 1440088 |
| Main valve assy with float for 1/2" - 3", DN15 - DN20 FTGS14 - 10 | 1440180 |
| Maintenance kit for 1/2" - 3", DN15 - DN20 FTGS14 - 10 | 1440188 |
| Main valve assy with float for 1/2" - 3", DN15 - DN20 FTGS14 - 14 | 1440280 |
| Maintenance kit for 1/2" - 3", DN15 - DN20 FTGS14 - 14 | 1440288 |
| SLR and air vent assy for 1/2" - 2" DN15 - DN25 FTGS14C | 1446680 |
| Main valve assy with float for 1", DN25 FTGS14 - 4.5 | 1475080 |
| Maintenance kit for 1", DN25 FTGS14 - 4.5 | 1475088 |
| Main valve assy with float for 1", DN25 FTGS14 - 10 | 1475180 |
| Maintenance kit for 1", DN25 FTGS14 - 10 | 1475188 |
| Main valve assy with float for 1", DN25 FTGS14 - 14 | 1475280 |
| Maintenance kit for 1", DN25 FTGS14 - 14 | 1475288 |
| AKL10Mounting kit | 3440594/3KXE391000L0010 |
Float Steam Traps - FTGS14HC/FT43/44/46/47
| Spare Part Name | MPN |
|---|---|
| Ball float for 1 1/2" - 2" FT14, DN40 - DN100 FT43/FT44/FT46/FT47 | 0628085 |
| Gasket set (Pkt of 3) for 1" FT14HC, 1 1/4" FT14, DN15 - DN25 FT43 | 0660085 |
| Main valve assy with float for 1" FTGS14HC, 1 1/4" FT14, DN25 FT43 - 4.5 | 0664080 |
| Main valve assy with float for 1" FTGS14HC, 1 1/4" FT14, DN25 FT43 - 10 | 0664180 |
| Main valve assy with float for 1" FTGS14HC, 1 1/4" FT14, DN25 FT43 - 14 | 0664280 |
| Main valve assy for DN40 FT43/FT44/FT46/FT47 - 4.5 | 0666080 |
| Gasket set (Pkt of 3) for 1 1/2" FT44, DN40 FT43 | 0666081 |
| Main valve assy for 1 1/2" FT14 - 4.5 | 0666085 |
| Main valve assy for DN40 FT43/FT44/FT46/FT47 - 10 | 0666180 |
| Main valve assy for 1 1/2" FT14 - 10 | 0666185 |
| Main valve assy for DN40 FT43/FT44/FT46/FT47 - 14/21/32 | 0666280 |
| Main valve assy for 1 1/2" FT14 - 14 | 0666285 |
| Main valve assy for DN50 FT43/FT44/FT46/FT47 - 4.5 | 0668080 |
| Gasket set (Pkt of 3) for 1 1/2" - 2" FT44, DN40 - DN50 - DN100 FT43 | 0668082 |
| Main valve assy for 2" FT14 - 4.5 | 0668085 |
| Main valve assy for DN50 FT43/FT44/FT46/FT47 - 10 | 0668180 |
| Main valve assy for 2" FT14 - 10 | 0668185 |
| Main valve assy for DN50 FT43/FT44/FT46/FT47 - 14/21/32 | 0668280 |
| Main valve assy for 2" FT14 - 14 | 0668285 |
| Air vent assy for 1 1/2" - 2" DN15 - DN50 FT (UP to 21 BARG) | 0836082 |
Thermostatic Steam Traps - BPC32/BPS32
| Spare Part Name | MPN |
|---|---|
| Capsule and seat set (STD) for BPC32/BPC32Y/BPS32/BPS32Y | 0051080 |
| Screen set for BPC32, BPC32CV, BPS32, AVC32, AVS32, SMC32 | 0051081 |
| Cover gasket set (Pkt of 3) BPC32Y, BPS32Y, AVC32, AVS32, SMC32Y | 0051082 |
| Screen set (Pkt of 1) Y type for BPC32Y, BPC32YCV, BPS32Y, BPS32YCV, SMC32Y | 0051083 |
| Strainer cap gasket set (Pkt of 3) for BPC32Y/CV, BPS32YCV, SMC32Y | 0051085 |
| Capsule and seat set (STD) for BPC32CV/BPC32YCV/BPS32CV/BPS32YCV | 0051280 |
| Capsule and seat set (NTS) for BPC32/BPC32Y/BPS32/BPS32Y | 0053480 |
| Capsule and seat set (NTS) for BPC32CV/BPC32YCV/BPS32CV/BPS32YCV | 0053680 |
| Capsule and seat set (SUB) for BPC32/BPC32Y/BPS32/BPS32Y | 0055880 |
| Capsule and seat set (SUB) for BPC32CV/BPC32YCV/BPS32CV/BPS32YCV | 0056080 |
Thermostatic Steam Traps - Other
| Spare Part Name | MPN |
|---|---|
| Gasket set (Pkt of 3) for BPT13/AV13 | 1220183 |
| BPT13/AV13 MAINT KIT "E" STD | 1225680 |
| Internal set for MST21/MST21H (F - FILL capsule) | 1250080 |
| Internal set for MST21/MST21H (E - FILL capsule) | 1250580 |
| Internal set for MST21/MST21H (G - FILL capsule) | 1251680 |
Thermodynamic Steam Traps
| Spare Part Name | MPN |
|---|---|
| Disc set (Pkt of 3) for 1/2" TD42H, TD42S2, TD42S3, DN15 TD32F | 0680280 |
| Disc set (Pkt of 3) for TD16, TD25, TD42L, TD42S2LC, TD42S3LC, DN15 TD32FLC | 0681083 |
| Disc set (Pkt of 3) for 3/4" TD42H, TD42S2, TD42S3, DN20 TD32F | 0681383 |
| Disc set (Pkt of 3) for 1" TD42H, TD42S2, TD42S3, TD52M DN25 TD32F | 0681483 |
| Strainer screen and gasket for TD16, TD42L, 1/2" TD42H, DN15 TD32F | 1534080 |
| Strainer screen and gasket for 3/4"-1" TD42H, DN20 - DN25 TD32F | 1534180 |
| Strainer screen and gasket for TD42S2, TD42S3 | 6190080 |

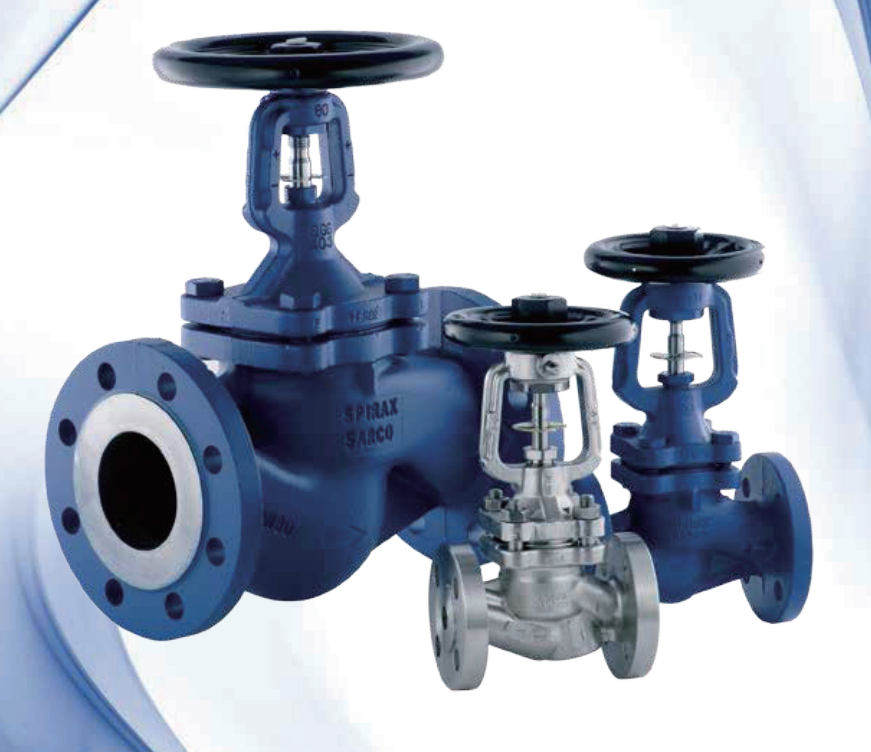

Globe Valve Spare Parts
BSA Series
| Spare Part Name | MPN |
|---|---|
| DN250 BSA2-BD balancing disc kit with gasket | 1346583 |
| DN15/20 BSA1,1T, BSA2 & 2T, BSA3 & 3T Gasket & Stem Packing Kit | 1370081 |
| DN25/32 BSA1,1T, BSA2 & 2T, BSA3 & 3T Gasket & Stem Packing Kit | 1370281 |
| DN40/50 BSA1,1T, BSA2 & 2T, BSA3 & 3T Gasket & Stem Packing Kit | 1370481 |
| DN65 BSA1,1T, BSA2 & 2T, BSA3 & 3T Gasket & Stem Packing Kit | 1370681 |
| DN80 BSA1,1T, BSA2 & 2T, BSA3 & 3T Gasket & Stem Packing Kit | 1370781 |
| DN100 BSA1,1T, BSA2 & 2T, BSA3 & 3T Gasket & Stem Packing Kit | 1370881 |
| DN125 BSA1,1T, BSA2 & 2T, BSA3 & 3T Gasket & Stem Packing Kit | 1370981 |
| DN150 BSA1,1T, BSA2 & 2T, BSA3 & 3T Gasket & Stem Packing Kit | 1371081 |
| DN200 BSA1,1T, BSA2 & 2T, BSA3 & 3T Gasket & Stem Packing Kit | 1371181 |
| DN250 Stem Bellows Kit with Gaskets for BSA2T/2(PN25) | 1371285 |
| DN100 Stem Bellows Kit with Gaskets for BSA1T, BSA2T/2(PN25) & BSA3/3T | 1372182 |
| DN125 Stem Bellows Kit with Gaskets for BSA1T, BSA2T/2(PN25) & BSA3/3T | 1372282 |
| DN125 BSA2/3-BD balancing disc kit with gasket | 1372283 |
| DN150 Stem Bellows Kit with Gaskets for BSA1T, BSA2T/2(PN25) & BSA3/3T | 1372382 |
| DN150 BSA2/3-BD balancing disc kit with gasket | 1372383 |
| DN200 Stem Bellows Kit with Gaskets for BSA1T, BSA2T/2(PN25) & BSA3/3T | 1372482 |
| DN200 BSA1/2/3-BD balancing disc kit with gasket | 1372483 |
| DN15/20 Stem Bellows Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840082 |
| DN15/20 Throttling Plug Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840083 |
| DN25/32 Stem Bellows Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840282 |
| DN25 Throttling Plug Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840283 |
| DN32 Throttling Plug Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840383 |
| DN40/50 Stem Bellows Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840482 |
| DN40 Throttling Plug Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840483 |
| DN50 Throttling Plug Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840583 |
| DN65 Stem Bellows Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840682 |
| DN65 Throttling Plug Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840683 |
| DN80 Stem Bellows Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840782 |
| DN80 Throttling Plug Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840783 |
| DN100 Throttling Plug Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840883 |
| DN125 Throttling Plug Kit with gaskets for BSA1T, BSA2T & BSA3T | 1840983 |
| DN150 Throttling Plug Kit with gaskets for BSA1T, BSA2T & BSA3T | 1841083 |
| DN200 Throttling Plug Kit with gaskets for BSA1T, BSA2T & BSA3T | 1841183 |
| DN250 Throttling Plug Kit with gaskets for BSA2T | 1841283 |
| DN200 Body/bonnet gasket and gland packing kits | 1846381 |
| DN200 Stem and bellows sub-assembly kits | 1846382 |
| DN200 Disc & Spigot kits | 1846383 |
| DN250 Body/bonnet gasket and gland packing kits | 1846481 |
| DN250 Stem and bellows sub-assembly kits | 1846482 |
| DN250 Disc & Spigot kits | 1846483 |
| DN300 Body/bonnet gasket and gland packing kits | 1846581 |
| DN300 Stem and bellows sub-assembly kits | 1846582 |
| DN300 Disc & Spigot kits | 1846583 |
| DN350 Body/bonnet gasket and gland packing kits | 1846681 |
| DN350 Stem and bellows sub-assembly kits | 1846682 |
| DN350 Disc & Spigot kits | 1846683 |
| DN400 Body/bonnet gasket and gland packing kits | 1846781 |
| DN400 Stem and bellows sub-assembly kits | 1846782 |
| DN400 Disc & Spigot kits | 1846783 |
KB31/KB33 Series
| Spare Part Name | MPN |
|---|---|
| HEAD & SEAT FOR DN25 KB31, KB33 & KB51 | 0781280 |
| BELLOWS & PUSH ROD FOR DN25 KB31, KB33 & KB51 | 0781281 |
| GASKET SET FOR DN25 KB31, KB33, KB43 & KB51 | 0781282 |
| BELLOWS & PUSH ROD FOR DN32 KB31, KB33, KB43 & KB51 | 0782480 |
| HEAD & SEAT FOR DN32 KB31, KB33, KB43 & KB51,KY31,KY33&KY51 | 0782482 |
| GASKET SET FOR DN32 KA, KB, KC, KX & KY VALVES | 0782581 |
| BELLOWS & PUSH ROD ASSY FOR DN40 KB31, KB33, KB43 & KB51 | 0783680 |
| HEAD & SEAT FOR DN40 KB31, KB33, KB43 & KB51 | 0783682 |
| GASKET SET FOR DN40 KA, KB, KC, KX & KY VALVES | 0783781 |
| BELLOWS & PUSH ROD ASSY FOR DN50 KB31, KB33, KB43 & KB51 | 0784880 |
| HEAD & SEAT FOR DN50 KB31, KB33, KB43 & KB51,KY31,KY33,KY51 | 0784882 |
| GASKET SET FOR DN50 KA, KB, KC, KX & KY VALVES | 0784981 |
Control Valve Spare Parts
Gasket Kits
| Spare Part Name | MPN |
|---|---|
| For C seat valve DN15 - 25 PC | 13800979 |
| For C seat valve DN32 - 50 PC | 13800980 |
| For C seat valve DN65 - 80 PC | 13800981 |
| For C seat valve DN100 PC After H21 | 13800982 |
| For standard valve DN15 - 25 PT/PP | 3749051 |
| For standard valve DN32 - 50 PT/PP | 3749052 |
| For standard valve DN65 - 80 PT/PP | 3749053 |
| For standard valve DN100 PT/PK After H21 | 3749054 |
| For standard balanced valve DN150 | 3781981 |
| For standard balanced valve DN125 | 3782981 |
| For standard balanced valve DN200 | 3782981 |
| For standard balanced valve DN250 | 3790880 |
| For standard balanced valve DN300 | 3791080 |
Stem Seal Kits
| Spare Part Name | MPN |
|---|---|
| PTFE DN15 - 25 | 3749080 |
| PTFE DN32 - 50 | 3749081 |
| PTFE DN65 - 80 | 3749082 |
| PTFE DN100 | 3749083 |
| Graphite Ring DN15 - 50 | 3749084 |
| Graphite Ring DN65 - 100 | 3749085 |
| Conversion kit PTFE to Graphite DN15 - 25 | 3749086 |
| Conversion kit PTFE to Graphite DN32 - 50 | 3749087 |
| Conversion kit PTFE to Graphite DN65 - 80 | 3749088 |
| Conversion kit PTFE to Graphite DN100 | 3749089 |
| PTFE DN125-300 | 3780982 |
| Graphite Ring DN125-300 | 3780983 |
| Conversion kit PTFE to Graphite DN125-300 | 3780984 |
Plug & Seat - PEEK Material
| Spare Part Name | MPN |
|---|---|
| PLUG& C SEAT KIT 431 EQ% FOR DN25 Kvs10 PC | 13800990 |
| PLUG& C SEAT KIT 431 EQ% FOR DN20 - 25 Kvs6.3 PC | 13800991 |
| PLUG& C SEAT KIT 431 EQ% FOR DN15 - 25 Kvs4.0 PC | 13800992 |
| PLUG& C SEAT KIT 431 EQ% FOR DN50 Kvs36 PC | 13801926 |
| PLUG& C SEAT KIT 431 EQ% FOR DN40 - 50 Kvs25 PC | 13801927 |
| PLUG& C SEAT KIT 431 EQ% FOR DN32 - 50 Kvs16 PC | 13801928 |
| PLUG& C SEAT KIT 431 EQ% FOR DN80 Kvs100 PC | 13801961 |
| PLUG& C SEAT KIT 431 EQ% FOR DN65 - 80 Kvs63 PC | 13801962 |
| PLUG& C SEAT KIT 431 EQ% FOR DN100 Kvs160 PC | 13801987 |
Plug & Seat - Metal Material
| Spare Part Name | MPN |
|---|---|
| 431 material Equal percent for DN15 - 25 Trim 16 Kvs 4.0 | 3749157 |
| 431 material Equal percent for DN20 - 25 Trim 18 Kvs 6.3 | 3749158 |
| 431 material Equal percent for DN25 Trim 22 Kvs 10.0 | 3749159 |
| 431 material Equal percent for DN32 - 50 Trim 25 Kvs 16.0 | 3749167 |
| 431 material Equal percent for DN40 - 50 Trim 38 Kvs 25 | 3749168 |
| 431 material Equal percent for DN50 Trim 45 Kvs 36 | 3749169 |
| 431 material Equal percent for DN65 - 80 Trim 60 Kvs 63 | 3749176 |
| 431 material Equal percent for DN80 Trim 75 Kvs 95 | 3749177 |
| 431 material Equal percent for DN100 Trim 95 Kvs 160 | 3749191 |
Actuator Clamping Nuts
| Spare Part Name | MPN |
|---|---|
| All valve types DN15 - 50 | 3749056 |
| For cast iron, SG iron & steel valves DN65 - 100 | 3749057 |
Pressure Reducing Valve Spare Parts
25P Series (1/2" - 2")
| Spare Part Name | MPN |
|---|---|
| Transmission Tubing with Fittings. (1/2", 3/4") | 13265694 |
| internal sensing tubing with Fittings. (1/2", 3/4", 1") | 13265695 |
| Transmission Tubing with Fittings. (1") | 13265697 |
| Transmission Tubing with Fittings. (1 1/4", 1 1/2") | 13265698 |
| internal sensing tubing with Fittings. (1 1/4", 1 1/2") | 13265699 |
| Transmission Tubing with Fittings. (2") | 13265751 |
| internal sensing tubing with Fittings. (2") | 13265752 |
| Diaphragm Plate.(1/2", 3/4",1",1 1/4", 1 1/2") | 3258008 |
| Diaphragm Plate.(2") | 3258009 |
| Cover Assembly with Cap Screws & Gasket (1 1/4", 1 1/2") | 3265598 |
| Cover Assembly with Cap Screws & Gasket (2") | 3265599 |
| Screen, Screen Support Disc, Valve Spring & Cap Gasket (1/2", 3/4") | 3265651 |
| Screen, Screen Support Disc, Valve Spring & Cap Gasket (1") | 3265652 |
| Screen, Screen Support Disc, Valve Spring & Cap Gasket (1 1/4", 1 1/2") | 3265653 |
| Screen, Screen Support Disc, Valve Spring & Cap Gasket (2") | 3265654 |
| Cover Gasket,Valve Head，Seat& SeatGasket. (1/2") | 3265657 |
| Cover Gasket,Valve Head，Seat& SeatGasket. (3/4") | 3265658 |
| Cover Gasket,Valve Head，Seat& SeatGasket. (1") | 3265665 |
| Cover Gasket,Valve Head，Seat& SeatGasket. (1 1/4") | 3265669 |
| Cover Gasket,Valve Head，Seat& SeatGasket. (1 1/2") | 3265672 |
| Cover Gasket,Valve Head，Seat& SeatGasket. (2") | 3265675 |
| Valve Stem Guide, Stem & Nut, Body/Diaphragm Case Gasket. (1/2", 3/4") | 3265680 |
| Valve Stem Guide, Stem & Nut, Body/Diaphragm Case Gasket. (1") | 3265681 |
| Valve Stem Guide, Stem & Nut, Body/Diaphragm Case Gasket. (1 1/4", 1 1/2") | 3265682 |
| Valve Stem Guide, Stem & Nut, Body/Diaphragm Case Gasket. (2") | 3265683 |
| Diaphragms (2 per set) (1/2", 3/4") | 3265689 |
| Diaphragms (2 per set) (1", 1 1/4", 1 1/2") | 3265690 |
| Diaphragms (2 per set) (2") | 3265691 |
| Gasket Kit: Cap, Seat, Body/Diaphragm Case & four Pilot Gaskets. (1/2", 3/4") | 3265757 |
| Gasket Kit: Cap, Seat, Body/Diaphragm Case & four Pilot Gaskets. (1") | 3265759 |
| Gasket Kit: Cap, Seat, Body/Diaphragm Case & four Pilot Gaskets. (1 1/4") | 3265761 |
| Gasket Kit: Cap, Seat, Body/Diaphragm Case & four Pilot Gaskets. (1 1/2") | 3265763 |
| Gasket Kit: Cap, Seat, Body/Diaphragm Case & four Pilot Gaskets. (2") | 3265765 |
| Cover Assembly with Cap Screws & Gasket (1/2", 3/4") | 3266763 |
| Cover Assembly with Cap Screws & Gasket (1") | 3266764 |
| Transmission and sensing Tubing with Fittings. (1/2", 3/4") | 6901092 |
| Transmission and sensing Tubing with Fittings. (1") | 6901102 |
| Transmission and sensing Tubing with Fittings. (1 1/4", 1 1/2") | 6901112 |
| Transmission and sensing Tubing with Fittings. (2") | 6901122 |
| sensing tube (copper) for 25PDN15-DN50(1/2" - 2") | V000000001 |
25P Series (2 1/2" - 5")
| Spare Part Name | MPN |
|---|---|
| Transmission Tubing with Fittings. (Copper). (2 1/2") | 13265753 |
| Transmission Tubing with Fittings. (Copper). (3") | 13265754 |
| Transmission Tubing with Fittings. (Copper). (4" & 5") | 13265755 |
| Diaphragm Plate. (2 1/2", 3") | 3258010 |
| Diaphragm Plate. (4" & 5") | 3258011 |
| Relief Tube. (2 1/2", 3") | 3258022 |
| Relief Tube. (4" & 5") | 3258023 |
| Damping Assembly. (2 1/2", 3") | 3258027 |
| Damping Assembly. (4" & 5") | 3258028 |
| Diaphragms (2 per set). (2 1/2", 3") | 3265692 |
| Diaphragms (2 per set). (4" & 5") | 3265693 |
| Gasket Kit: Cap, Body/Diaphragm Case & four Pilot Gaskets. (2 1/2") | 3265770 |
| Gasket Kit: Cap, Body/Diaphragm Case & four Pilot Gaskets. (3") | 3265771 |
| Gasket Kit: Cap, Body/Diaphragm Case & four Pilot Gaskets. (4" & 5") | 3265772 |
| Lower Stem, Nut & Stem Guide. (2 1/2", 3") | 3265788 |
| Lower Stem, Nut & Stem Guide. (4" & 5") | 3265789 |
| Cap Gasket, Head & Stem Assembly Seat & Stem Guide. (2 1/2") | 3265853 |
| Screen, Screen Retaining Ring, Main Valve Spring & Cap Gasket. (2 1/2") | 3265854 |
| Cap Gasket, Head & Stem Assembly Seat & Stem Guide. (3") | 3265858 |
| Cap Gasket, Head & Stem Assembly Seat & Stem Guide. (4" & 5") | 3265859 |
| Screen, Screen Retaining Ring, Main Valve Spring & Cap Gasket. (3") | 3265863 |
| Screen, Screen Retaining Ring, Main Valve Spring & Cap Gasket. (4" & 5") | 3265864 |
| Cap Assembly with Cap Screws & Gasket - Includes Upper Stem Guide. (2 1/2") | 3266765 |
| Cap Assembly with Cap Screws & Gasket - Includes Upper Stem Guide. (3") | 3266766 |
| Cap Assembly with Cap Screws & Gasket - Includes Upper Stem Guide. (4" & 5") | 3266767 |
| Transmission Tubing with Fittings. (SS). (2 1/2") | 6901132 |
| Transmission Tubing with Fittings. (SS). (3") | 6901142 |
| Transmission Tubing with Fittings. (SS). (4" & 5") | 6901152 |
| sensing tube (copper) for DN65-DN150 (2 1/2", 3", 5") | V000000000 |
25P Series (6")
| Spare Part Name | MPN |
|---|---|
| Diaphragm Plate & Set Screws (6") | 1201150004 |
| Pilot & Main linkage tube (6") | 1201150010 |
| Pilot Screen Assembly (6") | 1201150316 |
| Pilot Platform Cast Iron (6") | 1201150320 |
| Cap Gasket, Head & Stem Assembly Seat & Stem Guide. (6") | 1201150800 |
| Main Valve Spring & Lower Diaphragm Cover Gaskets (6") | 201150012 |
| Transmission Tubing with Fittings. (Copper) (6") | 201150200 |
| Gasket Kit: Cap, Body/Diaphragm Case & Pilot Gaskets. (6") | 201150333 |
| Main Diaphragms (2 per set) (6") | 201150444 |
| Transmission Tubing with Fittings. (SS) (6") | 2201150200 |
25P Pilot Valve Parts
| Spare Part Name | MPN |
|---|---|
| Adjustment Spring Yellow | 3258004 |
| Adjustment Spring Blue | 3258005 |
| Adjustment Spring Red | 3258006 |
| Cover Plate with Retaining Ring | 3265791 |
| Stem Guide with Gasket P & PA | 3265793 |
| Stem Guide with Seal & Gasket 25 BP (not shown) | 3265794 |
| Head & Seat Assembly with Gasket(Steam) | 3265797 |
| Head & Seat Assembly with Gasket(Gas) | 3265798 |
| Square Gasket for all Pilots (packet of 3) | 3265866 |
| Adjustment Screw with Nut and Upper Spring Support Discs | 3265867 |
| Head & Seat Assembly for 25BP (not shown) | 3265875 |
| 25P Pilot Valve SG Red Spring | 3266760 |
| 25P Pilot Valve SG Blue Spring | 3266761 |
| 25P Pilot Valve SG Yellow Spring | 3266762 |
| Diaphragm Assembly | 6902220 |
DP27 Series
| Spare Part Name | MPN |
|---|---|
| DP27 Pilot Seat ASSY 1/2" - 2" | 4700085 |
| Maintenance Kits DP27 and DP27R DN15LC,DN15 | 4700088 |
| DP27 Pilot Fiter/CAP Gasket 1/2" - 2" 3pcs each | 4700180 |
| Maintenance Kits DP27 and DP27R 1/2"LC,1/2",3/4",DN20 | 4700288 |
| Maintenance Kits DP27 and DP27R 1", DN25 | 4700388 |
| Maintenance Kits DP27 and DP27R DN32 | 4700488 |
| Maintenance Kits DP27 and DP27R DN40 | 4700588 |
| Maintenance Kits DP27 and DP27R DN50 | 4700688 |
DP143 Series
| Spare Part Name | MPN |
|---|---|
| Maintenance Kit For DN15 DP143 LC | 0062088 |
| Maintenance Kit For DN20 DP143 | 0064088 |
| Maintenance Kit For DN25 DP143 | 0066088 |
| Maintenance Kit For DN32 DP143 | 0068088 |
| Maintenance Kit For DN40 DP143 | 0070088 |
| Maintenance Kit For DN50 DP143 | 0072088 |
| Maintenance Kit For DN80 DP143 | 0074088 |
BRV2/BRV7 Series
| Spare Part Name | MPN |
|---|---|
| BELLOWS ASSY FOR BRV2S,SRV2S & CONTROL BELLOWS For BRV7 | 0457380 |
| BELLOWS ASSY FOR BRV2B/BP & LRV2B | 0457382 |
| BOLTS SET FOR BRV2 | 0457383 |
| CONTROL SPRING (GREY) & CAP FOR BRV2 / BRV 7 | 0457384 |
| CONTROL SPRING (GREEN) & CAP FOR BRV2 / BRV7 | 0457484 |
| CONTROL SPRING (ORANGE) & CAP FOR BRV2 | 0457584 |
| GASKET SET FOR BRV2 | 0957243 |
| GASKET SET FOR LRV2/BRV2S5/BRV2B5 | 0957244 |
| SEAT ASSY FOR 1/2" BRV2S / 2B / 2SP / 2BP / 2S5 / 2B5 | 10457381 |
| SEAT ASSY FOR 3/4" BRV2S / 2B / 2SP / 2BP / 2S5 / 2B5 | 10458381 |
| SEAT ASSY FOR 1" BRV2S / 2B / 2SP / 2BP / 2S5 / 2B5 | 10459381 |
BRV7 Series
| Spare Part Name | MPN |
|---|---|
| BELLOWS & PUSH ROD ASSY FOR DN25-32 BRV7 & HP10 | 2100080 |
| STRAINER SCREEN & GASKET SET FOR DN25-50 BRV7 & HP10 | 2100081 |
| BOTTOM CAP & GASKET SET FOR DN25-50 BRV7 & HP10 | 2100082 |
| RETURN SPRING & GASKET SET FOR DN25-50 BRV7 & HP10 | 2100083 |
| BOLTS SET FOR DN25-50 BRV7 & HP10 | 2100084 |
| CONTROL SPRING ( ORANGE) & CAP FOR DN25-50 BRV7 & HP10 | 2100085 |
| BELLOWS & PUSH ROD ASSY FOR DN40-50 BRV7 & HP10 | 2100680 |
Actuator Spare Parts
PN9 Series
| Spare Part Name | MPN |
|---|---|
| Stem Seal Kit for PN9100, PN9200 & PN9300 Actuator | 3579180 |
| Diaphragm kit for PN9100 series actuators | 3579182 |
| Travel Indicator Kit for PN9100, PN9200 & PN9320 Actuators | 3579183 |
| Spring Kit for PN9120 Actuators (0.2 - 1.0 bar) | 3579184 |
| Spring Kit for PN9126 Actuators (1.0 to 2.0 bar) | 3579185 |
| Spring Kit for PN9123 Actuators (2.0 to 4.0 bar) | 3579186 |
| Spare Linkage kit for PN9100, PN9200 and PN9320 Actuator | 3579188 |
| Diaphragm kit for PN9200 series actuators | 3579282 |
| Spring Kit for PN9220 Actuators (0.2 to 1.0 bar) | 3579284 |
| Spring Kit for PN9226 Actuators (1.0 to 2.0 bar) | 3579285 |
| Spring Kit for PN9223 Actuators (2.0 to 4.0 bar) | 3579286 |
| Diaphragm kit for PN9300 series actuators | 3579382 |
| Travel Indicator Kit for PN9330, PN9336 & PN9337 Actuators | 3579383 |
| Spring Kit for PN9320 Actuators (0.2 to 1.0 bar) | 3579384 |
| Spring Kit for PN9330 Actuators (0.4 - 1.2 bar) | 3579385 |
| Spring Kit for PN9336 Actuators (1.0 - 2.0 bar) | 3579386 |
| Spring Kit for PN9337 Actuators (2.5 - 3.5bar) | 3579387 |
| Spare Linkage Kit for PN9330, PN9336 & PN9337 Actuators | 3579388 |
PF51G Series
| Spare Part Name | MPN |
|---|---|
| SEAL KIT FOR 1/2" PF51G-1NC/NO/BD | 3733080 |
| SEAL KIT FOR 3/4" PF51G-1NC/NO/BD | 3733081 |
| SEAL KIT FOR 1/2" PF51G-2NC/NO/BD(before 2022/6/22) | 3733083 |
| SEAL KIT FOR 3/4" PF51G-2NC/NO/BD(before 2022/6/22) | 3733084 |
| SEAL KIT FOR 1" PF51G-2NC/NO/BD(before 2022/6/22) | 3733085 |
| SEAL KIT FOR 1 1/4" PF51G-2NC/NO/BD(before 2022/6/22) | 3733086 |
| SEAL KIT FOR 1 1/2" PF51G-2NC/NO/BD(before 2022/6/22) | 3733087 |
| SEAL KIT FOR 2" PF51G-2NC/NO/BD(before 2022/6/22) | 3733088 |
| SEAL KIT FOR 1" PF51G-3NC/NO/BD(before 2022/6/22) | 3733089 |
| SEAL KIT FOR 1 1/4" PF51G-3NC/NO/BD(before 2022/6/22) | 3733180 |
| SEAL KIT FOR 1 1/2" PF51G-3NC/NO/BD(before 2022/6/22) | 3733181 |
| SEAL KIT FOR 2" PF51G-3NC/NO/BD(before 2022/6/22) | 3733182 |
| SEAL KIT FOR 1/2" PF51G-2NC/NO/BD(After 2022/6/22) | 3733380 |
| SEAL KIT FOR 3/4" PF51G-2NC/NO/BD(After 2022/6/22) | 3733381 |
| SEAL KIT FOR 1" PF51G-2NC/NO/BD(After 2022/6/22) | 3733382 |
| SEAL KIT FOR 1 1/4" PF51G-2NC/NO/BD(After 2022/6/22) | 3733383 |
| SEAL KIT FOR 1 1/2" PF51G-2NC/NO/BD(After 2022/6/22) | 3733384 |
| SEAL KIT FOR 2" PF51G-2NC/NO/BD(After 2022/6/22) | 3733385 |
| SEAL KIT FOR 1" PF51G-3NC/NO/BD(After 2022/6/22) | 3733386 |
| SEAL KIT FOR 1 1/4" PF51G-3NC/NO/BD(After 2022/6/22) | 3733386 |
| SEAL KIT FOR 1 1/2" PF51G-3NC/NO/BD(After 2022/6/22) | 3733388 |
| SEAL KIT FOR 2" PF51G-3NC/NO/BD(After 2022/6/22) | 3733389 |
PF61 Series
| Spare Part Name | MPN |
|---|---|
| SEAL KIT FOR 1/2" PF61G-1NC/NO/BD | 3730080 |
| SEAL KIT FOR 3/4" PF61G-1NC/NO/BD | 3730081 |
| SEAL KIT FOR 1/2" PF61G-2NC/NO/BD (Valve before 2022/6/22) | 3730082 |
| SEAL KIT FOR 3/4" PF61G-2NC/NO/BD (Valve before 2022/6/22) | 3730083 |
| SEAL KIT FOR 1" PF61G-2NC/NO/BD (Valve before 2022/6/22) | 3730084 |
| SEAL KIT FOR 1 1/4" PF61G-2NC/NO/BD (Valve before 2022/6/22) | 3730085 |
| SEAL KIT FOR 1 1/2" PF61G-2NC/NO/BD (Valve before 2022/6/22) | 3730086 |
| SEAL KIT FOR 2" PF61G-2NC/NO/BD (Valve before 2022/6/22) | 3730087 |
| SEAL KIT FOR 1" PF61G-3NC/NO/BD (Valve before 2022/6/22) | 3730088 |
| SEAL KIT FOR 1 1/4" PF61G-3NC/NO/BD (Valve before 2022/6/22) | 3730089 |
| SEAL KIT FOR 1 1/2" PF61G-3NC/NO/BD (Valve before 2022/6/22) | 3730180 |
| SEAL KIT FOR 2" PF61G-3NC/NO/BD (Valve before 2022/6/22) | 3730181 |
| SEAL KIT FOR 1/2" PF61G-2NC/NO/BD (Valve after 2022/6/22) | 3731280 |
| SEAL KIT FOR 3/4" PF61G-2NC/NO/BD (Valve after 2022/6/22) | 3731281 |
| SEAL KIT FOR 1" PF61G-2NC/NO/BD (Valve after 2022/6/22) | 3731282 |
| SEAL KIT FOR 1 1/4" PF61G-2NC/NO/BD (Valve after 2022/6/22) | 3731283 |
| SEAL KIT FOR 1 1/2" PF61G-2NC/NO/BD (Valve after 2022/6/22) | 3731284 |
| SEAL KIT FOR 2" PF61G-2NC/NO/BD (Valve after 2022/6/22) | 3731285 |
| SEAL KIT FOR 1" PF61G-3NC/NO/BD (Valve after 2022/6/22) | 3731286 |
| SEAL KIT FOR 1 1/4" PF61G-3NC/NO/BD (Valve after 2022/6/22) | 3731287 |
| SEAL KIT FOR 1 1/2" PF61G-3NC/NO/BD (Valve after 2022/6/22) | 3731288 |
| SEAL KIT FOR 2" PF61G-3NC/NO/BD (Valve after 2022/6/22) | 3731289 |
Pump Spare Parts
MFP14 Series
| Spare Part Name | MPN |
|---|---|
| Inlet and exhaust valves/seats set for MFP14 DN25/40 | 1360081 |
| Float set for MFP14 DN25/40 | 1360083 |
| Cover mechanism set (BSP) for MFP14 DN25/40 | 1360084 |
| Sping and shaft kit for MFP14 DN25/40 | 1360180 |
| Mechanism set for MFP14 DN25/40 | 1360488 |
| Cover gasket for DN25 - DN80 MFP14/S | 1360880 |
| Inlet and exhaust valves/seats set for MFP14/S/SS DN50/80 | 1360881 |
| Float set for MFP14/S/SS DN50/80 | 1360883 |
| Cover mechanism set (BSP) for MFP14 DN50/80 | 1360884 |
| Mechanism set for MFP14 DN50/80 | 1360888 |
| Sping and shaft kit for MFP14 DN50/80 | 1361282 |
APT14 Series
| Spare Part Name | MPN |
|---|---|
| Cover mechanism kit (BSP) for APT14 | 16120280 |
| Trap and outlet check valve kit for APT14 | 16120281 |
| Inlet and exhaust valve/seat kit for APT14 | 16120282 |
| Inlet check valve for APT14 | 16120283 |
| Cover gasket for APT14 | 16120284 |
| Float kit for APT14 | 16120285 |
| Spring and actuator arm kit for APT14 | 16120286 |
| Cover mechanism kit (NPT) for APT14 | 16120287 |
APT14HC Series
| Spare Part Name | MPN |
|---|---|
| Cover mechanism kit (BSP) with motive strainer for APT14HC | 16120482 |
| Cover mechanism kit (NPT) with motive strainer for APT14HC | 16120483 |
| Inlet and exhaust valve/seat kit for APT14HC | 16120485 |
| Spring and actuator arm kit for APT14HC | 16120486 |
| Float kit for APT14HC | 16120487 |
| Trap valve and seat for APT14HC | 16120488 |
| Inlet check valve for APT14HC | 16120489 |
| Cover gasket for APT14HC | 16120490 |
Filter Spare Parts
FIG Series
| Spare Part Name | MPN |
|---|---|
| Cap gasket set (Pkt of 3) for DN15 FIG12/13/14/16/33/33.1/34/37 | 0957210 |
| Cap gasket set (Pkt of 3) for DN20 FIG12/13/14/16/33/33.1/34/37 | 0957211 |
| Cap gasket set (Pkt of 3) for DN25 FIG12/13/14/16/33/33.1/34/37 | 0957212 |
| Cap gasket set (Pkt of 3) for DN65 FIG33/33.1/34/37 | 0957216 |
| Cap gasket set (Pkt of 3) for DN80 FIG33/33.1/34/37 | 0957217 |
| Cap gasket set (Pkt of 3) for DN100 FIG33/33.1/34/37 | 0957218 |
| Cap gasket set (Pkt of 3) for DN125 FIG33/33.1/34/37 | 0957219 |
| Cap gasket set (Pkt of 3) for DN150 FIG33/33.1/34/37 | 0957220 |
| Cap gasket set (Pkt of 3) for DN200 FIG33/33.1/34/37 | 0957221 |
| Cap gasket set (Pkt of 3) for DN32 FIG12/13/14/16/33/33.1/37 | 0957235 |
| Cap gasket set (Pkt of 3) for DN40 FIG12/13/14/16/33/33.1/37 | 0957236 |
| Cap gasket set (Pkt of 3) for DN50 FIG12/13/14/16/33/33.1/37 | 0957237 |
| Screen set 1/32 Perf (0.8mm) SS for DN15 FIG12/13/14/33/33.1/34/37 | 1630081 |
| Screen set 100 mesh SS for DN15 FIG12/13/14/33/33.1/34/37 | 1630082 |
| Screen set 1/32 Perf (0.8mm) SS for DN20 FIG12/13/14/33/33.1/34/37 | 1630181 |
| Screen set 100 mesh SS for DN20 FIG12/13/14/33/33.1/34/37 | 1630182 |
| Screen set 1/32 Perf (0.8mm) SS for DN25 FIG12/13/14/33/33.1/34/37 | 1630281 |
| Screen set 100 mesh SS for DN25 FIG12/13/14/33/33.1/34/37 | 1630282 |
| Screen set 1/32 Perf (0.8mm) SS for DN32 FIG12/13/14/33/33.1/34/37 | 1630381 |
| Screen set 100 mesh SS for DN32 FIG12/13/14/33/33.1/34/37 | 1630382 |
| Screen set 1/32 Perf (0.8mm) SS for DN40 FIG12/13/14/33/33.1/34/37 | 1630481 |
| Screen set 100 mesh SS for DN40 FIG12/13/14/33/33.1/34/37 | 1630482 |
| Screen set 1/32 Perf (0.8mm) SS for DN50 FIG12/13/14/33/33.1/34/37 | 1630581 |
| Screen set 100 mesh SS for DN50 FIG12/13/14/33/33.1/34/37 | 1630582 |
| Screen set 1/32 Perf (0.8mm) SS for DN65 FIG33/33.1/34/37 | 1657581 |
| Screen set 100 mesh SS for DN65 FIG33/33.1/34/37 | 1657582 |
| Screen set 1/32 Perf (0.8mm) SS for DN80 FIG33/33.1/34/37 | 1659081 |
| Screen set 100 mesh SS for DN80 FIG33/33.1/34/37 | 1659082 |
| Screen set 1/16 Perf (1.6mm) SS for DN100 FIG33/33.1/34/37 | 1660581 |
| Screen set 100 mesh SS for DN100 FIG33/33.1/34/37 | 1660582 |
| Screen set 1/16 Perf (1.6mm) SS for DN125 FIG33/33.1/34/37 | 1662081 |
| Screen set 100 mesh SS for DN125 FIG33/33.1/34/37 | 1662082 |
| Screen set 1/16 Perf (1.6mm) SS for DN150 FIG33/33.1/34/37 | 1663581 |
| Screen set 100 mesh SS for DN150 FIG33/33.1/34/37 | 1663582 |
| Screen set 1/16 Perf (1.6mm) SS for DN200 FIG33/33.1/34/37 | 1665081 |
| Screen set 100 mesh SS for DN200 FIG33/33.1/34/37 | 1665082 |
Other Spare Parts
Hitter DN100-DN200
| Spare Part Name | MPN |
|---|---|
| Graphite Stem seal DN50-100 | 4140000205 |
| Graphite Stem seal DN150-200 | 4140000206 |
| Gasket for standard valve DN100 | 4140000212 |
| Gasket for standard valve DN150 | 4140000213 |
| Gasket for standard valve DN200 | 4140000214 |
| Diaphragm for DC09 | 4140000217 |
| Diaphragm for DC10 | 4140000218 |
| Sealing Set for DC09 | 4140000222 |
| Sealing Set for DC10 | 4140000223 |
| Cage&seat& stem&Plug For 85 51 6" P0390 | 4140000274 |
| Cage&seat& stem&Plug For 85 71 6" P0390 | 4140000275 |
| Cage&seat& stem&Plug For 85 71 6" 1RV0240 | 4140000276 |
| Cage&seat& stem&Plug For 85 51 6" 2R0186 | 4140000277 |
| Cage&seat& stem&Plug For 85 71 6" 2R0186 | 4140000278 |
| Cage&seat& stem&Plug For 85 51 8" P0550 | 4140000279 |
| Cage&seat& stem&Plug For 85 71 8" P0550 | 4140000280 |
| Cage&seat& stem&Plug For 85 71 8" 1R0490 | 4140000281 |
| Cage&seat& stem&Plug For 85 51 8" 2R0242 | 4140000282 |
| Cage&seat& stem&Plug For 85 71 8" 2R0242 | 4140000283 |
| Cage&seat& stem&Plug For 85 71 4" 1R0190 | 4140000284 |
| Cage&seat& stem&Plug For 85 71 4" 2R0110 | 4140000285 |
| Sealing Set for PP005 | 4140000286 |
| 85 51 Plug O-ring for DN15 | 4140000294 |
| 85 51 Plug O-ring for DN200 | 4140000295 |
| 85 51 Plug O-ring for DN150 2R | 4140000296 |
| 85 51 Plug O-ring for DN200 2R | 4140000297 |
Sight Glasses
| Spare Part Name | MPN |
|---|---|
| Window and gasket set for DN15 - DN20 SG253 | 1300080 |
| Gasket set for DN15 - DN20 SG253 | 1300081 |
| Window and gasket set for DN25 - DN32 SG253 | 1302080 |
| Gasket set for DN25 - DN32 SG253 | 1302081 |
| Window and gasket set for DN40 - DN50 SG253 | 1304080 |
| Gasket set for DN40 - DN50 SG253 | 1304081 |
M10S Series
| Spare Part Name | MPN |
|---|---|
| Seats and stem seals for M10S 1/4" RB & 3/8" RB | 6903002 |
| Seats and stem seals for M10S 1/2" RB & 3/8" FB | 6903012 |
| Seats and stem seals for M10S 3/4" RB & 1/2" FB | 6903022 |
| Seats and stem seals for M10S 1" RB & 3/4" FB | 6903032 |
| Seats and stem seals for M10S 11/4" RB & 1" FB | 6903042 |
| Seats and stem seals for M10S 11/2" RB & 11/4" FB | 6903052 |
| Seats and stem seals for M10S 2" RB & 11/2" FB | 6903062 |
| Seats and stem seals for M10S 21/2" RB & 2" FB | 6903064 |
M10Si Series
| Spare Part Name | MPN |
|---|---|
| Seats and steam seals for M10Si 1/4" to 3/8" RB & FB and 1/2" RB | 6906101 |
| Seats and steam seals for M10Si 3/4" RB & 1/2" FB | 6906106 |
| Seats and steam seals for M10Si 1" RB & 3/4" FB | 6906111 |
| Seats and steam seals for M10Si 11/4" RB & 1" FB | 6906116 |
| Seats and steam seals for M10Si 11/2" RB & 11/4" FB | 6906121 |
| Seats and steam seals for M10Si 2" RB & 11/2" FB | 6906126 |
| Seats and steam seals for M10Si 21/2" RB & 2" FB | 6906131 |
AEL5 Series
| Spare Part Name | MPN |
|---|---|
| SPINDLE NUT (PLASTIC) FOR AEL51x | 3581080 |
| SPINDLE NUT (PLASTIC) FOR AEL52x/AEL62x | 3581081 |
| SPINDLE NUT (PLASTIC) FOR AEL53x/AEL63x | 3581180 |
| SPINDLE NUT (BRASS) FOR AEL54x/AEL64x | 3581280 |
| SPINDLE NUT (BRASS) FOR AEL55x/AEL65x | 3581385 |
| SPINDLE NUT (BRASS) FOR AEL56x/AEL66x | 3581582 |
Uncategorized Parts
| Spare Part Name | MPN |
|---|---|
| VALVE ASSY FOR 1/2" SB | 0440080 |
| GASKET SET FOR 1/2" SB | 0440081 |
| VALVE ASSY FOR 3/4" SB | 0441080 |
| GASKET SET FOR 3/4" SB | 0441081 |
| VALVE ASSY FOR 1" SB | 0442080 |
| GASKET SET FOR 1" SB | 0442081 |
| Complete Seal Set for DN25 KBV21 | 4059180 |
| Complete Seal Set for DN32 KBV21 | 4059280 |
| Complete Seal Set for DN40 KBV21 | 4059380 |
| Complete Seal Set for DN50 KBV21 | 4059480 |
| Complete Seal Set for DN65 KBV21 | 4059580 |
Quick Reference Guide
Search Methods
- Search by MPN: Locate target spare part codes in the "MPN" column - fastest and most accurate
- Search by Name: Understand spare part specifications through names - ideal for initial screening
- Browse by Category: Find suitable spare parts based on equipment models
Procurement Notes
- 📋 Verify MPN: Always confirm the MPN code before procurement
- 🔍 Check Equipment Model: Ensure parts match your equipment
- 💼 Contact Suppliers: Confirm availability and pricing with authorized distributors
Tags:# Spirax Sarco# Spare Parts# MPN Reference# Maintenance
