Product Overview

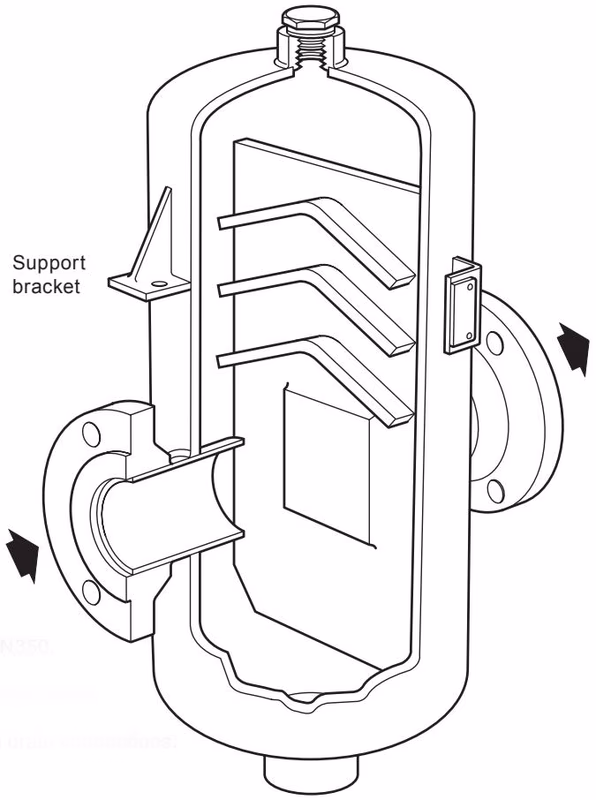

The S7 is a carbon steel baffle-type separator for the efficient removal of entrained liquids from steam, air, and gas systems. Through mechanical impingement on internal baffles, it separates droplets and collects them at the drain port. Depending on the application, a suitable steam trap (e.g., FT float type) or liquid drainer (e.g., CA series) is required to automatically discharge the collected condensate.

Product Application

• Steam Service: Recommended to fit an FT series ball float steam trap and AV series automatic air vent.
• Air/Gas Service: Recommended to fit a CA series ball float liquid drainer.

Pressure/Temperature Limits

Size and Flange Standard	Design Pressure (bar g)	Design Temperature (°C)	Cold Hydraulic Test Pressure (bar g)
PN16 (DN65-DN350)	14	198	21.8
ASME 150 (DN65-DN350)	20	213	31.9
JIS/KS 20K (DN65-DN350)	23	217	37.0
PN40 (DN65-DN350)	25	225	40.8
ASME 300 (DN65-DN350)	25	225	40.8

Note: For pressures and temperatures that exceed these operating conditions, please contact Spirax Sarco for special order.

Material Specifications

All components of the S7, including the shell and internal baffles, are manufactured from Carbon Steel. For a complete stainless steel version, please see the S8 series (TI-P138-10).

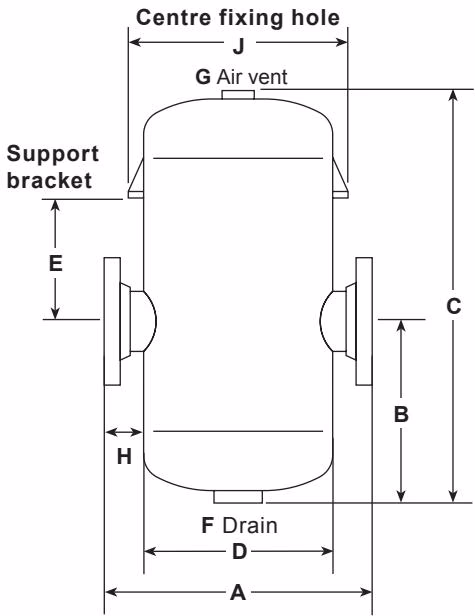

Dimensions, Weight and Volume (Approximate)

Size (DN)	Design Pressure (bar g)	A	B	C	D	E	F	G	H	J	K	Weight (kg)	Volume (L)
65	14/23/25	420	252	638	219	181	1"	¾"	100.5	263	30	47	18
80	14/23/25	489	332	735	273	204	1"	¾"	125.5	368	30	64	32
100	14/23/25	574	337	795	324	180	2"	¾"	125.5	384	40	88	52
125	14/23/25	656	310	843	377	247	2"	¾"	150.5	416	44	120	66
150	14/23/25	736	310	913	406	262	2"	¾"	150.5	451	44	140	88
200	14/23/25	880	350	1023	508	282	2"	¾"	200.5	501	44	225	155
250	14/23/25	1030	400	1173	610	332	2"	¾"	250.5	576	44	340	265
300	14/23/25	1180	450	1323	711	382	2"	¾"	300.5	651	44	480	415
350	14/23/25	1330	500	1473	813	432	2"	¾"	350.5	726	44	645	600

(Dimensions in mm, weights in kg, volume in Litres)

Installation and Maintenance

For full details see the Installation and Maintenance Instructions (IM-P023-55) supplied with the product.

Installation Note

• Efficient Drainage: To ensure efficient drainage of condensate, a suitable ball float trap must be installed.
• Balance Line: For air/gas applications, a balance line is required between the CA trap and the main line or top of the separator.
• Flow Direction: Install according to the flow direction arrow on the body.

How to Order

Example: 1 off Spirax Sarco DN80 S7 carbon steel separator with PN40 flanges. Suitable for pressures up to 25 bar g.

Spare Parts

The S7 is non-maintainable due to its fully welded construction - No internal spare parts are available.
