PN16
Overview
Spirax Sarco SRV461 and SRV463 series are direct acting pressure reducing valves with all wetted parts in AISI 316L (1.4404, 1.4408, 1.4462, and 1.4571) stainless steel. These valves are specifically engineered for steam, liquid, or gas applications where cleanliness and corrosion resistance are paramount.
Typical Applications
- Clean steam systems
- Gas and liquid supplies to centrifuges
- Freeze dryers and sterilisers
- Autoclaves and process tanks
- Humidifiers and culinary equipment
Food+ Variants
The Food+ variants are designed, manufactured, and approved for food contact compliant processes, meeting (EC)1935:2004 and FDA requirements.
Technical Information
The SRV461S (Screwed) and SRV463S (Flanged) valves operate by balancing spring force against downstream pressure transmitted to a diaphragm.

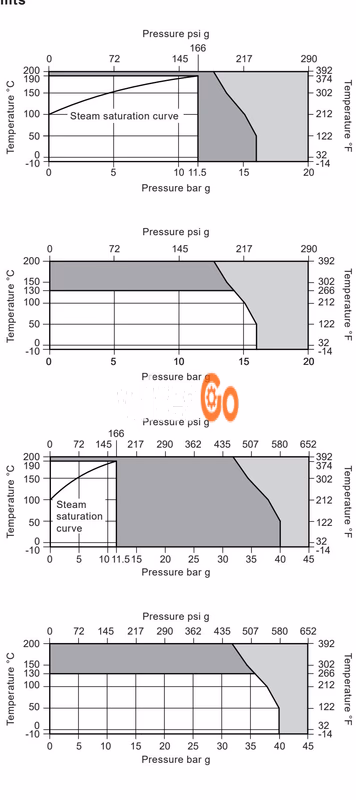

Pressure and Temperature Limits
Body Design Conditions
| Condition | Screwed, Flanged PN40 & Class 300 | Flanged Class 150 |
|---|---|---|
| Max Allowable Pressure | 40 bar g @ 50°C | 16 bar g @ 50°C |
| Max Allowable Temp | 200°C @ 31.8 bar g | 200°C @ 12.7 bar g |
| Min Allowable Temp | -10°C | -10°C |
| Max Operating Temp (Steam) | 190°C @ 11.5 bar g | 190°C @ 11.5 bar g |
Available Pressure Ranges
- 0.02 - 0.12 bar g
- 0.10 - 0.50 bar g
- 0.30 - 1.10 bar g
- 0.80 - 2.50 bar g
- 2.00 - 5.00 bar g
- 4.00 - 8.00 bar g
- 6.00 - 12.00 bar g
Materials

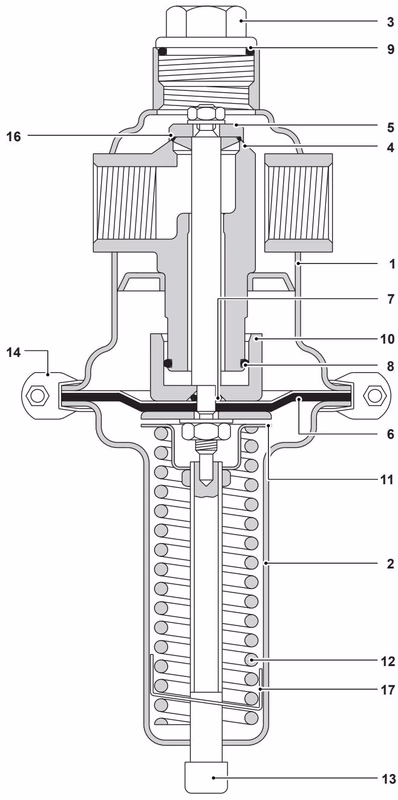

| No. | Part | Material | Werkstoff No. | AISI Equivalent |
|---|---|---|---|---|
| 1 | Body | Stainless steel | 1.4404 | 316L |
| 2 | Spring housing | Stainless steel | 1.4404 | 316L |
| 3 | Cap | Stainless steel | 1.4571 | 316Ti |
| 4 | Valve seat | Stainless steel | 1.4404 | 316L |
| 5 | Valve | Stainless steel | 1.4404 | 316L |
| 6 | Diaphragm | EPDM/PTFE | ||
| 7, 8, 9 | 'O' ring | FEPM | ||
| 12 | Spring | Stainless steel | 1.4310 | 301 |
| 16 | Soft seal | Fluoraz (FEPM) |
Dimensions and Weights

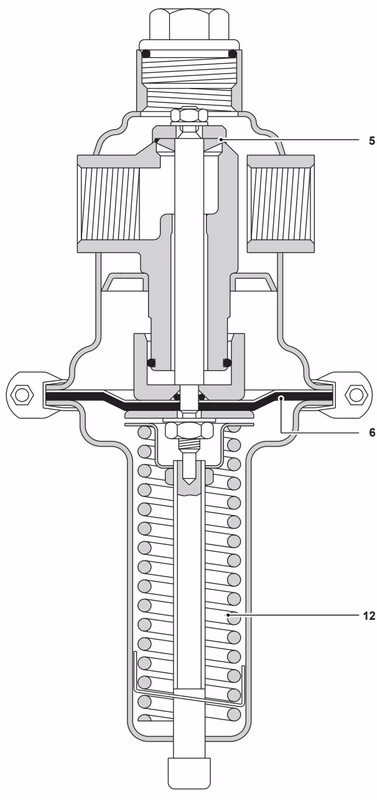

| Size (DN) | A (mm) | A1 (mm) | B (mm) | C (mm)* | OD (mm)* |
|---|---|---|---|---|---|
| DN15 (1/2") | 85 | 130 | 76 | 235 | 138 |
| DN20 (3/4") | 91 | 150 | 76 | 235 | 138 |
| DN25 (1") | 85 | 160 | 76 | 235 | 138 |
| DN32 (1-1/4") | 130 | 180 | 80 | 235 | 138 |
| DN40 (1-1/2") | 145 | 200 | 80 | 235 | 138 |
| DN50 (2") | 185 | 230 | 80 | 235 | 138 |
Note: C and OD dimensions vary by pressure range. The values shown above are for the 0.8 - 12 bar ranges.
Weights (approximate) in kg
| Set Range (bar) | 0.02-0.12 | 0.1-0.5 | 0.3-1.1 | 0.8-12 |
|---|---|---|---|---|
| 1/2" - 1" Screwed | 13.5 | 7.1 | 6.1 | 3.1 |
| DN15-DN25 Flanged | 15.3 | 8.9 | 7.9 | 4.9 |
| 1-1/4" - 2" Screwed | 14.4 | 8.0 | 7.0 | 4.0 |
| DN32-DN50 Flanged | 18.4 | 12.0 | 11.0 | 8.0 |
Installation and Maintenance
Installation

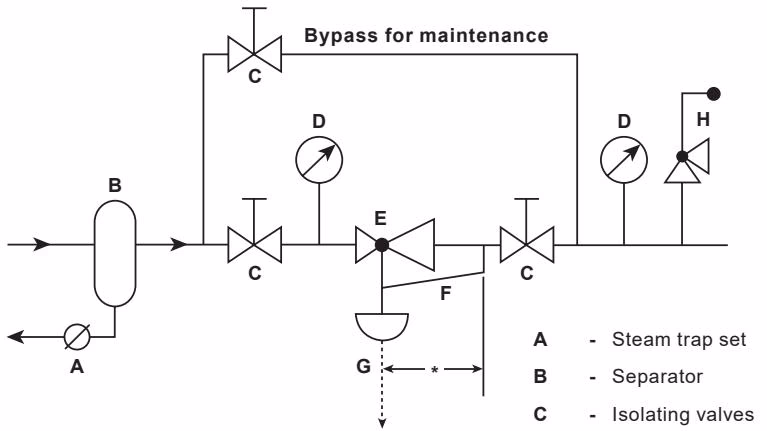

- The SRV should be fitted in a horizontal pipeline.
- For steam service, the adjustment head must be below the valve.
- A 1/4" sensing line with suitable compression fittings should be used, connected at least 15 pipe diameters after the valve.
Safety Precautions
Warning: Do not attempt to dismantle the valve without first releasing the compression on the control spring.
Note on Elastomer Seals: If the valve has been subjected to temperatures near 315°C, Viton/FPM may form hydrofluoric acid. Avoid skin contact.
Spare Parts

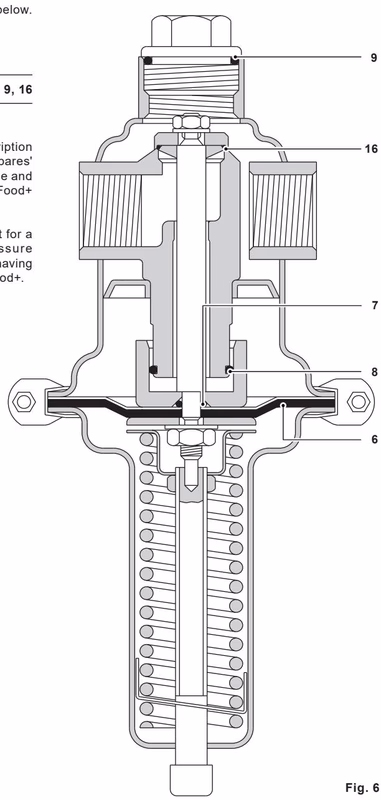

The following spare parts are available:
- Diaphragm and 'O' ring kit: Includes components 6, 7, 8, 9, 16.
