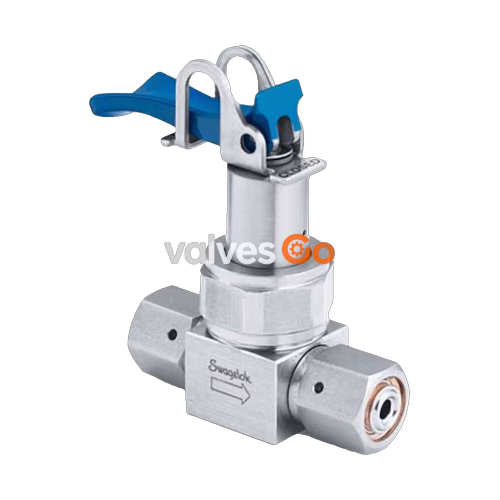

Swagelok 6LVV-DPTVR4-P is a 316L VIM-VAR ultrahigh-purity (UHP) diaphragm sealed valve. It features 1/4 in. integral male VCR fittings, is SC-01 cleaned, and comes with a blue toggle handle.

Straight Pattern and Multiport

Fulfill your high-purity or ultrahigh-purity system needs with Swagelok diaphragm-sealed valves, which are available in a wide variety of sizes, materials, and configurations for a range of applications.

Specifications

Specification	Value
Actuator Type	Manual
Body Material	316L VIM-VAR
Cleaning Process	Ultrahigh-Purity Process Specification (SC-01)
Connection 1 Size	1/4 in.
Connection 1 Type	Face Seal (Metal Gasket) Male VCR
Connection 2 Size	1/4 in.
Connection 2 Type	Face Seal (Metal Gasket) Male VCR
CV Maximum	0.27
Flow Pattern	Straight (2-way)
Handle Color	Blue
Handle Style	Toggle
Maximum Temperature, °F (°C)	150 (65)
Max Temperature Pressure Rating	150°F @ 250 PSIG / 65°C @ 17.2 BAR
Minimum Temperature, °F (°C)	-10 (-23)
Room Temperature Pressure Rating	250 PSIG @ 70°F / 17.2 BAR @ 20°C
Seat Material	PCTFE
Surface Finish	5 μin (0.13 μm) Ra
eClass (4.1)	37010206
eClass (5.1.4)	37011800
eClass (6.0)	37011801
eClass (6.1)	37011801
eClass (10.1)	37011801
UNSPSC (4.03)	40141600
UNSPSC (10.0)	40141621
UNSPSC (11.0501)	40141621
UNSPSC (13.0601)	40141621
UNSPSC (15.1)	40141621

WARNING

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
