PN100

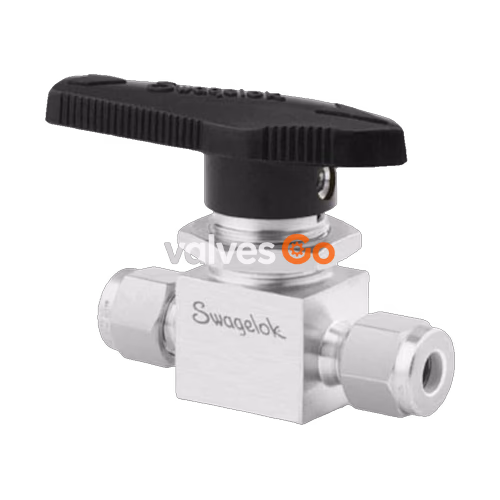

Swagelok SS-43GS12MM Stainless Steel 1-Piece 40G Series Ball Valve with 12 mm Swagelok Tube Fittings. Built to function dependably in different temperature ranges, endure thermal cycling, and reduce leakage.
2-Way Straight Pattern
The 40 series valves and the 40G series valves offer multiple actuator, flow path, and handle options. These valves allow for packing adjustments while remaining inline.
| Specifications | |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 12 mm |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 12 mm |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 0.9 |
| Flow Path | Standard |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Oval |
| Low Emissions Certified | Yes |
| Packing Material | Modified PTFE UHMWPE |
WARNING
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
