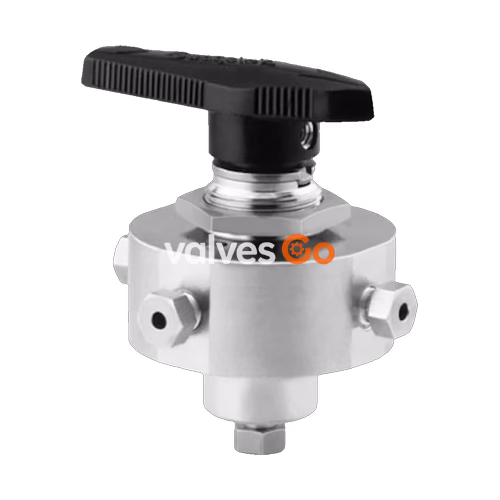

Swagelok SS-43ZFS2 is a 1-piece 40 series ball valve designed for multi-port switching in liquid flow control systems. Constructed from 316 stainless steel, this 5-way valve features a 0.07 flow coefficient (Cv) and 1/8 inch female Swagelok tube fitting connections across all ports. The valve is equipped with a black lever handle and PTFE packing, ensuring reliable performance in general service applications with a pressure rating of 2500 PSIG at 100°F (172 BAR at 37°C).

Technical Specifications

Specification	Detail
Ball/Stem Material	Stainless Steel
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Flow Pattern	5-Way, Switching
CV Maximum	0.07
Orifice	0.062 in (1.6 mm)
Packing Material	PTFE
Handle Style	Black Lever
Low Emissions Certified	Yes
Testing	According to WS-22

Port Configuration

This switching valve utilizes four peripheral connections and a common port to manage flow distribution. All connections are 1/8 in. Female Swagelok tube fittings, providing consistent and secure integration into instrumentation systems.

System Selection and Safety

Safety First

When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Do not mix or interchange Swagelok products with components from other manufacturers that are not governed by industrial design standards.

Series Evolution

The 40 series 1-piece instrumentation ball valves have been a reliable industry standard for decades. Swagelok continues to evolve the design, offering options for various actuators, flow paths, and handles, including inline packing adjustments to maintain seal integrity over time.
