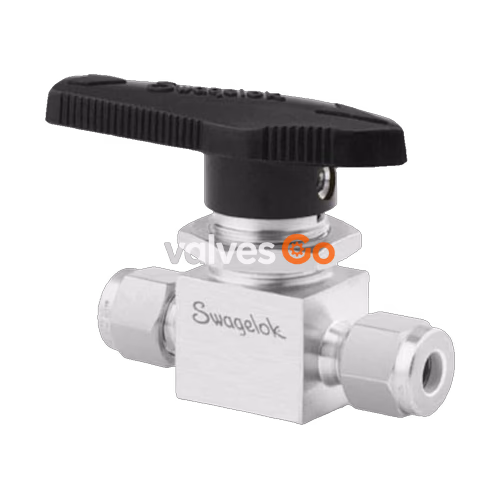

Swagelok SS-45TS8-K is a stainless steel 1-piece 40 series ball valve, featuring a two-way straight pattern and one-piece instrumentation design suitable for on-off service. The valve includes 1/2 in. Swagelok tube fittings, live-loaded PFA packing, and an oval handle.
2-Way Straight Pattern
The 40 series valves and the 40G series valves offer multiple actuator, flow path, and handle options. These valves allow for packing adjustments while remaining inline.
Specifications
| Specification | Value |
|---|---|
| Ball/Stem Material | Stainless Steel |
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 12 |
| Flow Path | Standard |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Oval |
| Low Emissions Certified | Yes |
| Orifice | 0.406 in / 10.3 mm |
| Packing Material | Live-Loaded PFA |
| Ring/Disc Material | PTFE-Coated Stainless Steel |
| Room Temperature Pressure Rating | 2500 PSIG @ 100°F / 172 BAR @ 37°C |
| Service Class | Live-Loaded PFA |
| Testing | Testing according to WS-22 |
Installation Note
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
