Product Overview

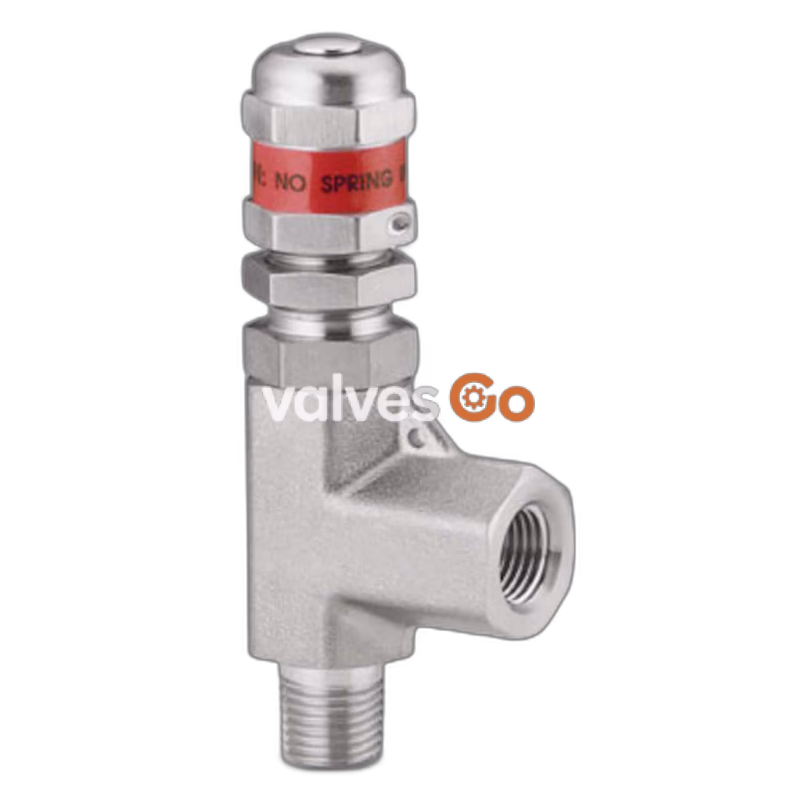

SS-4R3A5-RT is a Swagelok relief valve for instrumentation and process systems, with a 316 Stainless Steel body and 1/4 in. Male ISO Tapered Thread x 1/4 in. Female ISO Tapered Thread connections.
Core Features
- Part Number: SS-4R3A5-RT
- Body Material: 316 Stainless Steel
- Connection Configuration: 1/4 in. x Male ISO Tapered Thread x 1/4 in. x Female ISO Tapered Thread
- Cleaning Process: Standard Cleaning and Packaging (SC-10)
Detailed Technical Parameters
| Parameter | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Male ISO Tapered Thread |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Female ISO Tapered Thread |
| Handle Style | No Handle |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37°C |
| Seal Material | Fluorocarbon FKM |
| Service Class | High Pressure |
| Testing | No Optional Testing |
| eClass (4.1) | 37010901 |
| eClass (5.1.4) | 37019901 |
| eClass (6.0) | 37010901 |
| eClass (6.1) | 37019901 |
| eClass (10.1) | 37019901 |
| UNSPSC (4.03) | 40141606 |
| UNSPSC (10.0) | 40141606 |
| UNSPSC (11.0501) | 40141606 |
| UNSPSC (13.0601) | 40141606 |
| UNSPSC (15.1) | 40141606 |
| UNSPSC (17.1001) | 40183109 |
